4/24 ABB MOTOR PROTECTION AND CONTROL

—

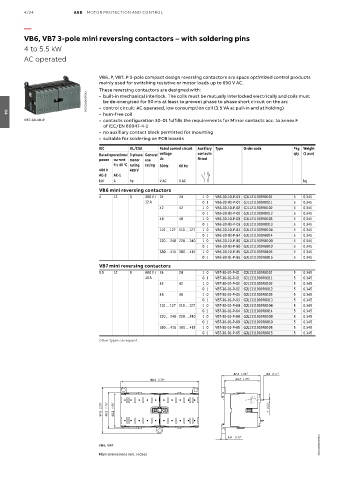

VB6, VB7 3-pole mini reversing contactors – with soldering pins

4 to 5.5 kW
AC operated

VB6..P, VB7..P 3-pole compact design reversing contactors are space optimized control products
mainly used for switching resistive or motor loads up to 690 V AC.
These reversing contactors are designed with:
2CDC211010S0011 • control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
• built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must
be de-energised for 50 ms at least to prevent phase to phase short circuit on the arc

04
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
VB7-30-10-P • hum-free coil
of IEC/EN 60947-4-1
• no auxiliary contact block permitted for mounting
• suitable for soldering on PCB boards
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General voltage contacts qty (1 pce)
power current motor use Uc fitted
θ ≤ 40 °C rating rating 50 Hz 60 Hz
400 V 480 V
AC-3 AC-1
kW A hp V AC V AC kg
VB6 mini reversing contactors
4 12 3 300 V / 24 24 1 0 VB6-30-10-P-01 GJL1211909R0101 5 0.345
12 A 0 1 VB6-30-01-P-01 GJL1211909R0011 5 0.345
42 42 1 0 VB6-30-10-P-02 GJL1211909R0102 5 0.345
0 1 VB6-30-01-P-02 GJL1211909R0012 5 0.345
48 48 1 0 VB6-30-10-P-03 GJL1211909R0103 5 0.345
0 1 VB6-30-01-P-03 GJL1211909R0013 5 0.345
110 … 127 110 … 127 1 0 VB6-30-10-P-84 GJL1211909R8104 5 0.345
0 1 VB6-30-01-P-84 GJL1211909R8014 5 0.345
220 … 240 220 … 240 1 0 VB6-30-10-P-80 GJL1211909R8100 5 0.345
0 1 VB6-30-01-P-80 GJL1211909R8010 5 0.345
380 … 415 380 … 415 1 0 VB6-30-10-P-85 GJL1211909R8105 5 0.345
0 1 VB6-30-01-P-85 GJL1211909R8015 5 0.345
VB7 mini reversing contactors
5.5 12 5 600 V / 24 24 1 0 VB7-30-10-P-01 GJL1311909R0101 5 0.345
16 A 0 1 VB7-30-01-P-01 GJL1311909R0011 5 0.345
42 42 1 0 VB7-30-10-P-02 GJL1311909R0102 5 0.345
0 1 VB7-30-01-P-02 GJL1311909R0012 5 0.345
48 48 1 0 VB7-30-10-P-03 GJL1311909R0103 5 0.345
0 1 VB7-30-01-P-03 GJL1311909R0013 5 0.345
110 … 127 110 … 127 1 0 VB7-30-10-P-84 GJL1311909R8104 5 0.345
0 1 VB7-30-01-P-84 GJL1311909R8014 5 0.345
220 … 240 220 … 240 1 0 VB7-30-10-P-80 GJL1311909R8100 5 0.345
0 1 VB7-30-01-P-80 GJL1311909R8010 5 0.345
380 … 415 380 … 415 1 0 VB7-30-10-P-85 GJL1311909R8105 5 0.345
0 1 VB7-30-01-P-85 GJL1311909R8015 5 0.345
Other types on request

47.7 1.88" 4.3 0.17"
96.2 3.79" 44.7 1.76"

57.5 2.26" 45.2 1.78" 42.2 1.66" 1 0.04"

4.5 0.18"
VB6, VB7 2CDC102025C0201
Main dimensions mm, inches
