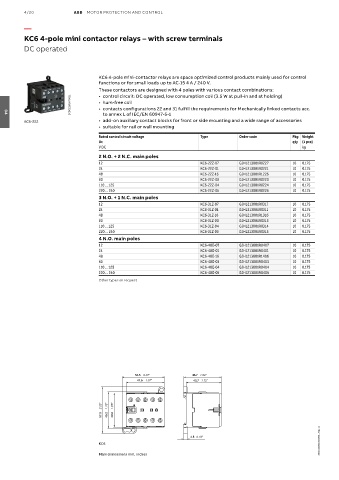

KC6 4-pole mini contactor relays – with screw terminals

DC operated

KC6 4-pole mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to AC-15 4 A / 240 V.
These contactors are designed with 4 poles with various contact combinations:
• control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
2CDC211016F0011 • hum-free coil
• contacts configurations 22 and 31 fulfill the requirements for Mechanically linked contacts acc.
to annex L of IEC/EN 60947-5-1
04
KC6-22Z • add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
• suitable for rail or wall mounting
Rated control circuit voltage Type Order code Pkg Weight
Uc qty (1 pce)
V DC kg
2 N.O. + 2 N.C. main poles
12 KC6-22Z-07 GJH1213001R0227 10 0.175
24 KC6-22Z-01 GJH1213001R0221 10 0.175
48 KC6-22Z-16 GJH1213001R1226 10 0.175
60 KC6-22Z-03 GJH1213001R0223 10 0.175
110 ... 125 KC6-22Z-04 GJH1213001R0224 10 0.175
220 ... 240 KC6-22Z-05 GJH1213001R0225 10 0.175
3 N.O. + 1 N.C. main poles
12 KC6-31Z-07 GJH1213001R0317 10 0.175
24 KC6-31Z-01 GJH1213001R0311 10 0.175
48 KC6-31Z-16 GJH1213001R1316 10 0.175
60 KC6-31Z-03 GJH1213001R0313 10 0.175
110 ... 125 KC6-31Z-04 GJH1213001R0314 10 0.175
220 ... 240 KC6-31Z-05 GJH1213001R0315 10 0.175
4 N.O. main poles
12 KC6-40E-07 GJH1213001R0407 10 0.175
24 KC6-40E-01 GJH1213001R0401 10 0.175
48 KC6-40E-16 GJH1213001R1406 10 0.175
60 KC6-40E-03 GJH1213001R0403 10 0.175
110 ... 125 KC6-40E-04 GJH1213001R0404 10 0.175
220 ... 240 KC6-40E-05 GJH1213001R0405 10 0.175
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

2CDC102012C0201 - Rev. A
4.5 0.18"
KC6
Main dimensions mm, inches
