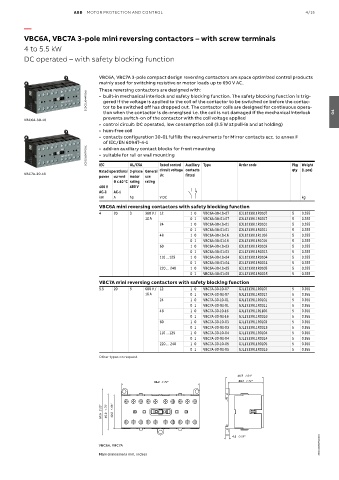

Page 531 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 4/15

—
VBC6A, VBC7A 3-pole mini reversing contactors – with screw terminals

4 to 5.5 kW
DC operated – with safety blocking function

VBC6A, VBC7A 3-pole compact design reversing contactors are space optimized control products
mainly used for switching resistive or motor loads up to 690 V AC.
These reversing contactors are designed with:
2CDC211044F0011 • built-in mechanical interlock and safety blocking function. The safety blocking function is trig-
gered if the voltage is applied to the coil of the contactor to be switched on before the contac-
tor to be switched off has dropped out. The contactor coils are designed for continuous opera-
tion when the contactor is de-energised i.e. the coil is not damaged if the mechanical interlock
prevents switch-on of the contactor with the coil voltage applied 04
VBC6A-30-10
• control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
2CDC211007F0011 • suitable for rail or wall mounting Order code Pkg Weight
• add-on auxiliary contact blocks for front mounting

UL/CSA
Rated control Auxiliary Type
IEC
VBC7A-30-10 Rated operational 3-phase General circuit voltage contacts qty (1 pce)
fitted
Uc
power current motor use
θ ≤ 40 °C rating rating
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
VBC6A mini reversing contactors with safety blocking function
4 20 3 300 V / 12 1 0 VBC6A-30-10-07 GJL1213911R0107 5 0.355
12 A 0 1 VBC6A-30-01-07 GJL1213911R0017 5 0.355
24 1 0 VBC6A-30-10-01 GJL1213911R0101 5 0.355
0 1 VBC6A-30-01-01 GJL1213911R0011 5 0.355
48 1 0 VBC6A-30-10-16 GJL1213911R1106 5 0.355
0 1 VBC6A-30-01-16 GJL1213911R1016 5 0.355
60 1 0 VBC6A-30-10-03 GJL1213911R0103 5 0.355
0 1 VBC6A-30-01-03 GJL1213911R0013 5 0.355
110 ... 125 1 0 VBC6A-30-10-04 GJL1213911R0104 5 0.355
0 1 VBC6A-30-01-04 GJL1213911R0014 5 0.355
220 … 240 1 0 VBC6A-30-10-05 GJL1213911R0105 5 0.355
0 1 VBC6A-30-01-05 GJL1213911R0015 5 0.355
VBC7A mini reversing contactors with safety blocking function
5.5 20 5 600 V / 12 1 0 VBC7A-30-10-07 GJL1313911R0107 5 0.355
16 A 0 1 VBC7A-30-01-07 GJL1313911R0017 5 0.355
24 1 0 VBC7A-30-10-01 GJL1313911R0101 5 0.355
0 1 VBC7A-30-01-01 GJL1313911R0011 5 0.355
48 1 0 VBC7A-30-10-16 GJL1313911R1106 5 0.355
0 1 VBC7A-30-01-16 GJL1313911R0016 5 0.355
60 1 0 VBC7A-30-10-03 GJL1313911R0103 5 0.355
0 1 VBC7A-30-01-03 GJL1313911R0013 5 0.355
110 ... 125 1 0 VBC7A-30-10-04 GJL1313911R0104 5 0.355
0 1 VBC7A-30-01-04 GJL1313911R0014 5 0.355
220 … 240 1 0 VBC7A-30-10-05 GJL1313911R0105 5 0.355
0 1 VBC7A-30-01-05 GJL1313911R0015 5 0.355
Other types on request

46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"

4.5 0.18"
VBC6A, VBC7A 2CDC102019C0201
Main dimensions mm, inches
