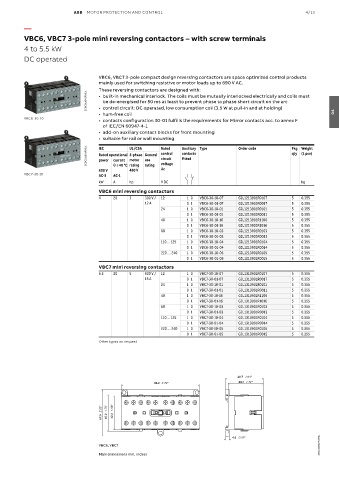

Page 529 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 4/13

—
VBC6, VBC7 3-pole mini reversing contactors – with screw terminals

4 to 5.5 kW
DC operated

VBC6, VBC7 3-pole compact design reversing contactors are space optimized control products
mainly used for switching resistive or motor loads up to 690 V AC.
These reversing contactors are designed with:
2CDC211042F0011 • built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must
be de-energised for 50 ms at least to prevent phase to phase short circuit on the arc
• control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)

VBC6-30-10 • hum-free coil 04
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
• add-on auxiliary contact blocks for front mounting
• suitable for rail or wall mounting
2CDC211001F0011 IEC current UL/CSA use Rated Auxiliary Type Order code Pkg Weight
contacts
control
(1 pce)
qty
Rated operational 3-phase General
circuit
fitted
motor
power
voltage
rating
rating
θ ≤ 40 °C
VBC7-30-10 400 V AC-1 480 V Uc
AC-3
kW A hp V DC kg
VBC6 mini reversing contactors
4 20 3 300 V / 12 1 0 VBC6-30-10-07 GJL1213901R0107 5 0.355
12 A 0 1 VBC6-30-01-07 GJL1213901R0017 5 0.355
24 1 0 VBC6-30-10-01 GJL1213901R0101 5 0.355
0 1 VBC6-30-01-01 GJL1213901R0011 5 0.355
48 1 0 VBC6-30-10-16 GJL1213901R1106 5 0.355
0 1 VBC6-30-01-16 GJL1213901R1016 5 0.355
60 1 0 VBC6-30-10-03 GJL1213901R0103 5 0.355
0 1 VBC6-30-01-03 GJL1213901R0013 5 0.355
110 ... 125 1 0 VBC6-30-10-04 GJL1213901R0104 5 0.355
0 1 VBC6-30-01-04 GJL1213901R0014 5 0.355
220 … 240 1 0 VBC6-30-10-05 GJL1213901R0105 5 0.355
0 1 VBC6-30-01-05 GJL1213901R0015 5 0.355
VBC7 mini reversing contactors
5.5 20 5 600 V / 12 1 0 VBC7-30-10-07 GJL1313901R0107 5 0.355
16 A 0 1 VBC7-30-01-07 GJL1313901R0017 5 0.355
24 1 0 VBC7-30-10-01 GJL1313901R0101 5 0.355
0 1 VBC7-30-01-01 GJL1313901R0011 5 0.355
48 1 0 VBC7-30-10-16 GJL1313901R1106 5 0.355
0 1 VBC7-30-01-16 GJL1313901R1016 5 0.355
60 1 0 VBC7-30-10-03 GJL1313901R0103 5 0.355
0 1 VBC7-30-01-03 GJL1313901R0013 5 0.355
110 ... 125 1 0 VBC7-30-10-04 GJL1313901R0104 5 0.355
0 1 VBC7-30-01-04 GJL1313901R0014 5 0.355
220 … 240 1 0 VBC7-30-10-05 GJL1313901R0105 5 0.355
0 1 VBC7-30-01-05 GJL1313901R0015 5 0.355
Other types on request

46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"

4.5 0.18"
VBC6, VBC7 2CDC102017C0201
Main dimensions mm, inches
