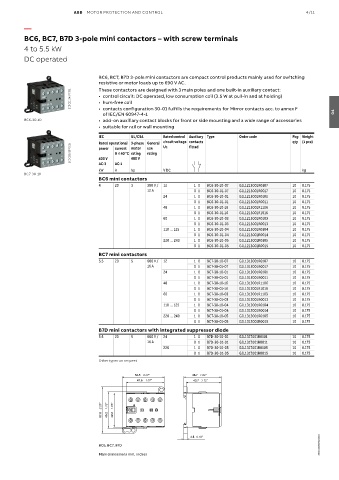

Page 527 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 4/11

—
BC6, BC7, B7D 3-pole mini contactors – with screw terminals

4 to 5.5 kW
DC operated

BC6, BC7, B7D 3-pole mini contactors are compact control products mainly used for switching
resistive or motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
2CDC211040F0011 • control circuit: DC operated, low consumption coil (3.5 W at pull-in and at holding)
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1 04
BC6-30-10 • add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
• suitable for rail or wall mounting
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
2CDC211013F0011 400 V θ ≤ 40 °C rating rating
Uc
fitted
use
motor
current
power
480 V
AC-3
A
kW AC-1 hp V DC kg
BC7-30-10
BC6 mini contactors
4 20 3 300 V / 12 1 0 BC6-30-10-07 GJL1213001R0107 10 0.175
12 A 0 1 BC6-30-01-07 GJL1213001R0017 10 0.175
24 1 0 BC6-30-10-01 GJL1213001R0101 10 0.175
0 1 BC6-30-01-01 GJL1213001R0011 10 0.175
48 1 0 BC6-30-10-16 GJL1213001R1106 10 0.175
0 1 BC6-30-01-16 GJL1213001R1016 10 0.175
60 1 0 BC6-30-10-03 GJL1213001R0103 10 0.175
0 1 BC6-30-01-03 GJL1213001R0013 10 0.175
110 … 125 1 0 BC6-30-10-04 GJL1213001R0104 10 0.175
0 1 BC6-30-01-04 GJL1213001R0014 10 0.175
220 … 240 1 0 BC6-30-10-05 GJL1213001R0105 10 0.175
0 1 BC6-30-01-05 GJL1213001R0015 10 0.175
BC7 mini contactors
5.5 20 5 600 V / 12 1 0 BC7-30-10-07 GJL1313001R0107 10 0.175
16 A 0 1 BC7-30-01-07 GJL1313001R0017 10 0.175
24 1 0 BC7-30-10-01 GJL1313001R0101 10 0.175
0 1 BC7-30-01-01 GJL1313001R0011 10 0.175
48 1 0 BC7-30-10-16 GJL1313001R1106 10 0.175
0 1 BC7-30-01-16 GJL1313001R1016 10 0.175
60 1 0 BC7-30-10-03 GJL1313001R1103 10 0.175
0 1 BC7-30-01-03 GJL1313001R0013 10 0.175
110 … 125 1 0 BC7-30-10-04 GJL1313001R0104 10 0.175
0 1 BC7-30-01-04 GJL1313001R0014 10 0.175
220 … 240 1 0 BC7-30-10-05 GJL1313001R0105 10 0.175
0 1 BC7-30-01-05 GJL1313001R0015 10 0.175
B7D mini contactors with integrated suppressor diode
5.5 20 5 600 V / 24 1 0 B7D-30-10-01 GJL1317001R0101 10 0.175
16 A 0 1 B7D-30-01-01 GJL1317001R0011 10 0.175
220 1 0 B7D-30-10-05 GJL1317001R0105 10 0.175
0 1 B7D-30-01-05 GJL1317001R0015 10 0.175
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
BC6, BC7, B7D 2CDC102015C0201
Main dimensions mm, inches
