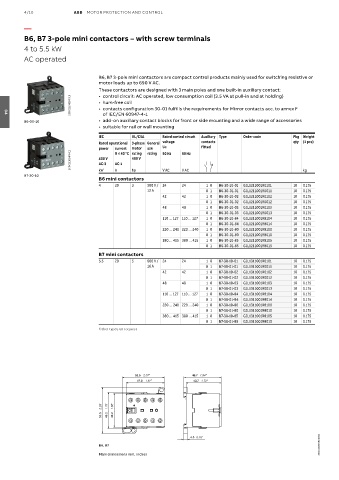

B6, B7 3-pole mini contactors – with screw terminals

4 to 5.5 kW
AC operated

B6, B7 3-pole mini contactors are compact control products mainly used for switching resistive or
motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
2CDC211001F0010 • hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
04
B6-30-10 • add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
• suitable for rail or wall mounting
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General voltage contacts qty (1 pce)
power current motor use Uc 60 Hz fitted
2CDC211014F0011 400 V AC-1 480 V
rating
rating
50 Hz
θ ≤ 40 °C
AC-3
B7-30-10 kW A hp V AC V AC kg
B6 mini contactors
4 20 3 300 V / 24 24 1 0 B6-30-10-01 GJL1211001R0101 10 0.175
12 A 0 1 B6-30-01-01 GJL1211001R0011 10 0.175
42 42 1 0 B6-30-10-02 GJL1211001R0102 10 0.175
0 1 B6-30-01-02 GJL1211001R0012 10 0.175
48 48 1 0 B6-30-10-03 GJL1211001R0103 10 0.175
0 1 B6-30-01-03 GJL1211001R0013 10 0.175
110 … 127 110 … 127 1 0 B6-30-10-84 GJL1211001R8104 10 0.175
0 1 B6-30-01-84 GJL1211001R8014 10 0.175
220 … 240 220 … 240 1 0 B6-30-10-80 GJL1211001R8100 10 0.175
0 1 B6-30-01-80 GJL1211001R8010 10 0.175
380 … 415 380 … 415 1 0 B6-30-10-85 GJL1211001R8105 10 0.175
0 1 B6-30-01-85 GJL1211001R8015 10 0.175
B7 mini contactors
5.5 20 5 600 V / 24 24 1 0 B7-30-10-01 GJL1311001R0101 10 0.175
16 A 0 1 B7-30-01-01 GJL1311001R0011 10 0.175
42 42 1 0 B7-30-10-02 GJL1311001R0102 10 0.175
0 1 B7-30-01-02 GJL1311001R0012 10 0.175
48 48 1 0 B7-30-10-03 GJL1311001R0103 10 0.175
0 1 B7-30-01-03 GJL1311001R0013 10 0.175
110 … 127 110 … 127 1 0 B7-30-10-84 GJL1311001R8104 10 0.175
0 1 B7-30-01-84 GJL1311001R8014 10 0.175
220 … 240 220 … 240 1 0 B7-30-10-80 GJL1311001R8100 10 0.175
0 1 B7-30-01-80 GJL1311001R8010 10 0.175
380 … 415 380 … 415 1 0 B7-30-10-85 GJL1311001R8105 10 0.175
0 1 B7-30-01-85 GJL1311001R8015 10 0.175
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
B6, B7 2CDC102008C0201
Main dimensions mm, inches
