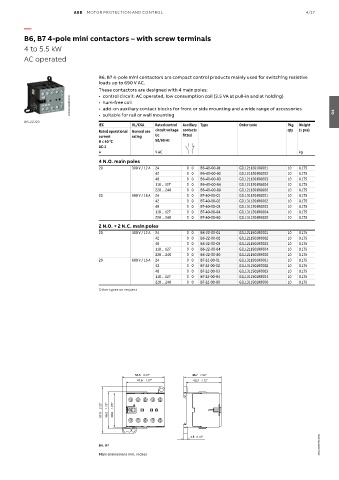

Page 533 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 4/17

—
B6, B7 4-pole mini contactors – with screw terminals

4 to 5.5 kW
AC operated

B6, B7 4-pole mini contactors are compact control products mainly used for switching resistive
loads up to 690 V AC.
These contactors are designed with 4 main poles:
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
2CDC211028F0011 • hum-free coil 04
• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories

B6-22-00 • suitable for rail or wall mounting
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational General use circuit voltage contacts qty (1 pce)
current rating Uc fitted
θ ≤ 40 °C 50/60 Hz
AC-1
A V AC kg
4 N.O. main poles
20 300 V / 12 A 24 0 0 B6-40-00-01 GJL1211201R0001 10 0.175
42 0 0 B6-40-00-02 GJL1211201R0002 10 0.175
48 0 0 B6-40-00-03 GJL1211201R0003 10 0.175
110 ... 127 0 0 B6-40-00-84 GJL1211201R8004 10 0.175
220 ... 240 0 0 B6-40-00-80 GJL1211201R8000 10 0.175
20 600 V / 16 A 24 0 0 B7-40-00-01 GJL1311201R0001 10 0.175
42 0 0 B7-40-00-02 GJL1311201R0002 10 0.175
48 0 0 B7-40-00-03 GJL1311201R0003 10 0.175
110 ... 127 0 0 B7-40-00-84 GJL1311201R8004 10 0.175
220 ... 240 0 0 B7-40-00-80 GJL1311201R8000 10 0.175
2 N.O. + 2 N.C. main poles
20 300 V / 12 A 24 0 0 B6-22-00-01 GJL1211501R0001 10 0.175
42 0 0 B6-22-00-02 GJL1211501R0002 10 0.175
48 0 0 B6-22-00-03 GJL1211501R0003 10 0.175
110 ... 127 0 0 B6-22-00-84 GJL1211501R8004 10 0.175
220 ... 240 0 0 B6-22-00-80 GJL1211501R8000 10 0.175
20 600 V / 16 A 24 0 0 B7-22-00-01 GJL1311501R0001 10 0.175
42 0 0 B7-22-00-02 GJL1311501R0002 10 0.175
48 0 0 B7-22-00-03 GJL1311501R0003 10 0.175
110 ... 127 0 0 B7-22-00-84 GJL1311501R8004 10 0.175
220 ... 240 0 0 B7-22-00-80 GJL1311501R8000 10 0.175
Other types on request

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

4.5 0.18"
B6, B7 2CDC102009C0201
Main dimensions mm, inches
