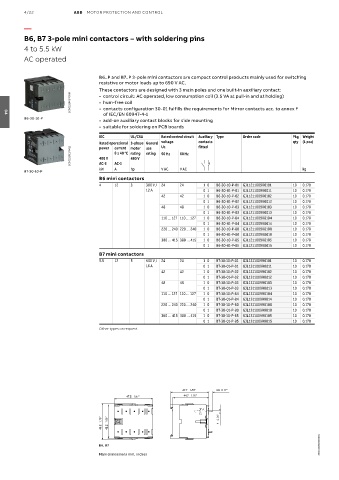

Page 538 - Motor protection and control Manual motor starters, contactors and overload relays

4/22 ABB MOTOR PROTECTION AND CONTROL

—
B6, B7 3-pole mini contactors – with soldering pins

4 to 5.5 kW
AC operated

B6..P and B7..P 3-pole mini contactors are compact control products mainly used for switching
resistive or motor loads up to 690 V AC.
These contactors are designed with 3 main poles and one built-in auxiliary contact:
2CDC211003F0010 • hum-free coil
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
04
B6-30-10-P • add-on auxiliary contact blocks for side mounting
• suitable for soldering on PCB boards
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General voltage contacts qty (1 pce)
Uc
fitted
current
use
motor
power
2CDC211011F0011 400 V θ ≤ 40 °C rating rating 50 Hz 60 Hz
480 V
AC-1
AC-3
B7-30-10-P kW A hp V AC V AC kg
B6 mini contactors
4 12 3 300 V / 24 24 1 0 B6-30-10-P-01 GJL1211009R0101 10 0.170
12 A 0 1 B6-30-01-P-01 GJL1211009R0011 10 0.170
42 42 1 0 B6-30-10-P-02 GJL1211009R0102 10 0.170
0 1 B6-30-01-P-02 GJL1211009R0012 10 0.170
48 48 1 0 B6-30-10-P-03 GJL1211009R0103 10 0.170
0 1 B6-30-01-P-03 GJL1211009R0013 10 0.170
110 … 127 110 … 127 1 0 B6-30-10-P-84 GJL1211009R8104 10 0.170
0 1 B6-30-01-P-84 GJL1211009R8014 10 0.170
220 … 240 220 … 240 1 0 B6-30-10-P-80 GJL1211009R8100 10 0.170
0 1 B6-30-01-P-80 GJL1211009R8010 10 0.170
380 … 415 380 … 415 1 0 B6-30-10-P-85 GJL1211009R8105 10 0.170
0 1 B6-30-01-P-85 GJL1211009R8015 10 0.170
B7 mini contactors
5.5 12 5 600 V / 24 24 1 0 B7-30-10-P-01 GJL1311009R0101 10 0.170
16 A 0 1 B7-30-01-P-01 GJL1311009R0011 10 0.170
42 42 1 0 B7-30-10-P-02 GJL1311009R0102 10 0.170
0 1 B7-30-01-P-02 GJL1311009R0012 10 0.170
48 48 1 0 B7-30-10-P-03 GJL1311009R0103 10 0.170
0 1 B7-30-01-P-03 GJL1311009R0013 10 0.170
110 … 127 110 … 127 1 0 B7-30-10-P-84 GJL1311009R8104 10 0.170
0 1 B7-30-01-P-84 GJL1311009R8014 10 0.170
220 … 240 220 … 240 1 0 B7-30-10-P-80 GJL1311009R8100 10 0.170
0 1 B7-30-01-P-80 GJL1311009R8010 10 0.170
380 … 415 380 … 415 1 0 B7-30-10-P-85 GJL1311009R8105 10 0.170
0 1 B7-30-01-P-85 GJL1311009R8015 10 0.170
Other types on request

47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04"

B6, B7 2CDC102023C0201
Main dimensions mm, inches
