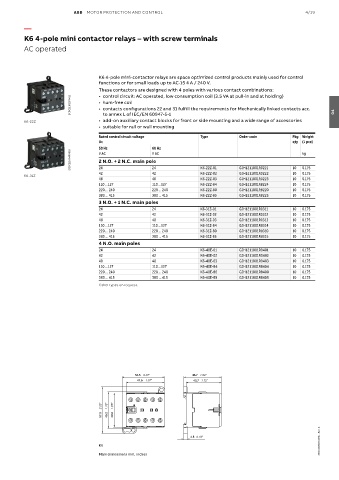

ABB MOTOR PROTECTION AND CONTROL 4/19

—
K6 4-pole mini contactor relays – with screw terminals

AC operated

K6 4-pole mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to AC-15 4 A / 240 V.
These contactors are designed with 4 poles with various contact combinations:
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
2CDC211012F0011 • hum-free coil 04
• contacts configurations 22 and 31 fulfill the requirements for Mechanically linked contacts acc.
to annex L of IEC/EN 60947-5-1
K6-22Z • add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
• suitable for rail or wall mounting
Rated control circuit voltage Type Order code Pkg Weight
Uc qty (1 pce)
50 Hz 60 Hz kg
2CDC211004F0010 2 N.O. + 2 N.C. main pole K6-22Z-01 GJH1211001R0221 10 0.175
V AC
V AC
24
24
K6-31Z 42 42 K6-22Z-02 GJH1211001R0222 10 0.175
48 48 K6-22Z-03 GJH1211001R0223 10 0.175
110 ...127 110 ...127 K6-22Z-84 GJH1211001R8224 10 0.175
220 ... 240 220 ... 240 K6-22Z-80 GJH1211001R8220 10 0.175
380 ... 415 380 ... 415 K6-22Z-85 GJH1211001R8225 10 0.175
3 N.O. + 1 N.C. main poles
24 24 K6-31Z-01 GJH1211001R0311 10 0.175
42 42 K6-31Z-02 GJH1211001R0312 10 0.175
48 48 K6-31Z-03 GJH1211001R0313 10 0.175
110 ...127 110 ...127 K6-31Z-84 GJH1211001R8314 10 0.175
220 ... 240 220 ... 240 K6-31Z-80 GJH1211001R8310 10 0.175
380 ... 415 380 ... 415 K6-31Z-85 GJH1211001R8315 10 0.175
4 N.O. main poles
24 24 K6-40E-01 GJH1211001R0401 10 0.175
42 42 K6-40E-02 GJH1211001R0402 10 0.175
48 48 K6-40E-03 GJH1211001R0403 10 0.175
110 ...127 110 ...127 K6-40E-84 GJH1211001R8404 10 0.175
220 ... 240 220 ... 240 K6-40E-80 GJH1211001R8400 10 0.175
380 ... 415 380 ... 415 K6-40E-85 GJH1211001R8405 10 0.175
Other types on request.

52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2

2CDC102011C0201 -Rev. A
4.5 0.18"
K6
Main dimensions mm, inches
