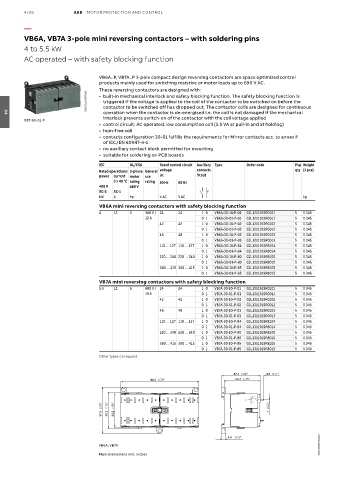

Page 542 - Motor protection and control Manual motor starters, contactors and overload relays
P. 542
4/26 ABB MOTOR PROTECTION AND CONTROL
—
VB6A, VB7A 3-pole mini reversing contactors – with soldering pins
4 to 5.5 kW
AC operated – with safety blocking function
VB6A..P, VB7A..P 3-pole compact design reversing contactors are space optimized control
products mainly used for switching resistive or motor loads up to 690 V AC.
These reversing contactors are designed with:
2CDC211013F0010 triggered if the voltage is applied to the coil of the contactor to be switched on before the
• built-in mechanical interlock and safety blocking function. The safety blocking function is
contactor to be switched off has dropped out. The contactor coils are designed for continuous
04
interlock prevents switch-on of the contactor with the coil voltage applied
VB7-30-01-P operation when the contactor is de-energised i.e. the coil is not damaged if the mechanical
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
• hum-free coil
• contacts configuration 30-01 fulfills the requirements for Mirror contacts acc. to annex F
of IEC/EN 60947-4-1
• no auxiliary contact block permitted for mounting
• suitable for soldering on PCB boards
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General voltage contacts qty (1 pce)
power current motor use Uc fitted
θ ≤ 40 °C rating rating 50 Hz 60 Hz
400 V 480 V
AC-3 AC-1
kW A hp V AC V AC kg
VB6A mini reversing contactors with safety blocking function
4 12 3 300 V / 24 24 1 0 VB6A-30-10-P-01 GJL1211919R0101 5 0.345
12 A 0 1 VB6A-30-01-P-01 GJL1211919R0011 5 0.345
42 42 1 0 VB6A-30-10-P-02 GJL1211919R0102 5 0.345
0 1 VB6A-30-01-P-02 GJL1211919R0012 5 0.345
48 48 1 0 VB6A-30-10-P-03 GJL1211919R0103 5 0.345
0 1 VB6A-30-01-P-03 GJL1211919R0013 5 0.345
110 … 127 110 … 127 1 0 VB6A-30-10-P-84 GJL1211919R8104 5 0.345
0 1 VB6A-30-01-P-84 GJL1211919R8014 5 0.345
220 … 240 220 … 240 1 0 VB6A-30-10-P-80 GJL1211919R8100 5 0.345
0 1 VB6A-30-01-P-80 GJL1211919R8010 5 0.345
380 … 415 380 … 415 1 0 VB6A-30-10-P-85 GJL1211919R8105 5 0.345
0 1 VB6A-30-01-P-85 GJL1211919R8015 5 0.345
VB7A mini reversing contactors with safety blocking function
5.5 12 5 600 V / 24 24 1 0 VB7A-30-10-P-01 GJL1311919R0101 5 0.345
16 A 0 1 VB7A-30-01-P-01 GJL1311919R0011 5 0.345
42 42 1 0 VB7A-30-10-P-02 GJL1311919R0102 5 0.345
0 1 VB7A-30-01-P-02 GJL1311919R0012 5 0.345
48 48 1 0 VB7A-30-10-P-03 GJL1311919R0103 5 0.345
0 1 VB7A-30-01-P-03 GJL1311919R0013 5 0.345
110 … 127 110 … 127 1 0 VB7A-30-10-P-84 GJL1311919R8104 5 0.345
0 1 VB7A-30-01-P-84 GJL1311919R8014 5 0.345
220 … 240 220 … 240 1 0 VB7A-30-10-P-80 GJL1311919R8100 5 0.345
0 1 VB7A-30-01-P-80 GJL1311919R8010 5 0.345
380 … 415 380 … 415 1 0 VB7A-30-10-P-85 GJL1311919R8105 5 0.345
0 1 VB7A-30-01-P-85 GJL1311919R8015 5 0.345
Other types on request
47.7 1.88" 4.3 0.17"
96.2 3.79" 44.7 1.76"
57.5 2.26" 45.2 1.78" 42.2 1.66" 1 0.04"
4.5 0.18"
VB6A, VB7A 2CDC102027C0201
Main dimensions mm, inches
