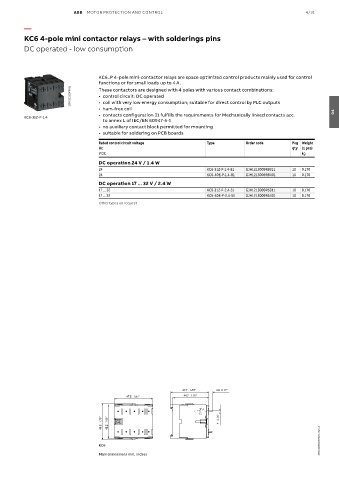

ABB MOTOR PROTECTION AND CONTROL 4/31

—
KC6 4-pole mini contactor relays – with solderings pins

DC operated - low consumption

KC6..P 4-pole mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to 4 A.
2CDC211023F0011 • control circuit: DC operated
These contactors are designed with 4 poles with various contact combinations:
• coil with very low energy consumption; suitable for direct control by PLC outputs
• hum-free coil
• contacts configuration 31 fulfills the requirements for Mechanically linked contacts acc. 04
KC6-31Z-P-1.4
to annex L of IEC/EN 60947-5-1
• no auxiliary contact block permitted for mounting
• suitable for soldering on PCB boards
Rated control circuit voltage Type Order code Pkg Weight
Uc qty (1 pce)
V DC kg
DC operation 24 V / 1.4 W
24 KC6-31Z-P-1.4-81 GJH1213009R8311 10 0.170
24 KC6-40E-P-1.4-81 GJH1213009R8401 10 0.170
DC operation 17 ... 32 V / 2.4 W
17 ... 32 KC6-31Z-P-2.4-51 GJH1213009R5311 10 0.170
17 ... 32 KC6-40E-P-2.4-51 GJH1213009R5401 10 0.170
Other types on request

47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04"
2CDC102032C0201 - Rev. A

KC6
Main dimensions mm, inches
