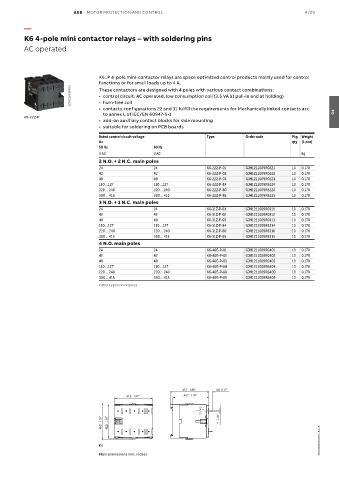

ABB MOTOR PROTECTION AND CONTROL 4/29

—
K6 4-pole mini contactor relays – with soldering pins

AC operated

K6..P 4-pole mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to 4 A.
2CDC211022F0011 These contactors are designed with 4 poles with various contact combinations:
• control circuit: AC operated, low consumption coil (3.5 VA at pull-in and at holding)
• hum-free coil
• contacts configurations 22 and 31 fulfill the requirements for Mechanically linked contacts acc.
to annex L of IEC/EN 60947-5-1 04
K6-22Z-P
• add-on auxiliary contact blocks for side mounting
• suitable for soldering on PCB boards
Rated control circuit voltage Type Order code Pkg Weight
Uc qty (1 pce)
50 Hz 60 Hz
V AC V AC kg
2 N.O. + 2 N.C. main poles
24 24 K6-22Z-P-01 GJH1211009R0221 10 0.170
42 42 K6-22Z-P-02 GJH1211009R0222 10 0.170
48 48 K6-22Z-P-03 GJH1211009R0223 10 0.170
110 ...127 110 ...127 K6-22Z-P-84 GJH1211009R8224 10 0.170
220 ... 240 220 ... 240 K6-22Z-P-80 GJH1211009R8220 10 0.170
380 ... 415 380 ... 415 K6-22Z-P-85 GJH1211009R8225 10 0.170
3 N.O. + 1 N.C. main poles
24 24 K6-31Z-P-01 GJH1211009R0311 10 0.170
42 42 K6-31Z-P-02 GJH1211009R0312 10 0.170
48 48 K6-31Z-P-03 GJH1211009R0313 10 0.170
110 ...127 110 ...127 K6-31Z-P-84 GJH1211009R8314 10 0.170
220 ... 240 220 ... 240 K6-31Z-P-80 GJH1211009R8310 10 0.170
380 ... 415 380 ... 415 K6-31Z-P-85 GJH1211009R8315 10 0.170
4 N.O. main poles
24 24 K6-40E-P-01 GJH1211009R0401 10 0.170
42 42 K6-40E-P-02 GJH1211009R0402 10 0.170
48 48 K6-40E-P-03 GJH1211009R0403 10 0.170
110 ...127 110 ...127 K6-40E-P-84 GJH1211009R8404 10 0.170
220 ... 240 220 ... 240 K6-40E-P-80 GJH1211009R8400 10 0.170
380 ... 415 380 ... 415 K6-40E-P-85 GJH1211009R8405 10 0.170
Other types on request.

47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04"
2CDC102030C0201 - Rev. A

K6
Main dimensions mm, inches
