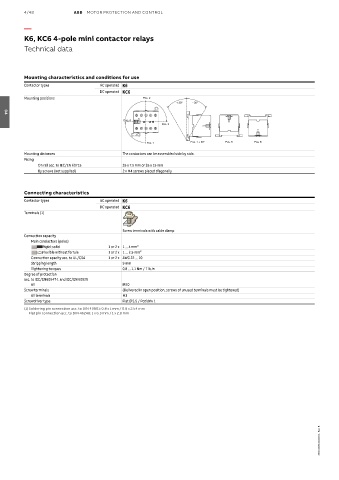

4/48 ABB MOTOR PROTECTION AND CONTROL

—
K6, KC6 4-pole mini contactor relays

Technical data

Mounting characteristics and conditions for use
Contactor types AC operated K6
DC operated KC6
Mounting positions Pos. 2
+ 30° - 30°

04
Pos. 4
Pos. 3

Pos. 1 Pos. 1 ± 30° Pos. 5 Pos. 6
Mounting distances The contactors can be assembled side by side.
Fixing
On rail acc. to IEC/EN 60715 35 x 7.5 mm or 35 x 15 mm
By screws (not supplied) 2 x M4 screws placed diagonally

Connecting characteristics
Contactor types AC operated K6
DC operated KC6
Terminals (1)

Screw terminals with cable clamp
Connection capacity
Main conductors (poles)
Rigid: solid 1 or 2 x 1 ... 4 mm²
Flexible without ferrule 1 or 2 x 1 ... 2.5 mm²
Connection apacity acc. to UL/CSA 1 or 2 x AWG 22 ... 10
Stripping length 9 mm
Tightening torques 0.8 ... 1.1 Nm / 7 lb.in
Degree of protection
acc. to IEC/EN60947-1 and IEC/EN 60529
All IP20
Screw terminals (Delivered in open position, screws of unused terminals must be tightened)
All terminals M3
Screwdriver type Flat Ø 5.5 / Pozidriv 1
(1) Soldering pin connection acc. to DIN 40801: 0.8 x 1 mm / 0.8 x 2.54 mm
Flat pin connection acc. to DIN 46248: 1 x 6.3 mm / 1 x 2.8 mm

2CDC102043C0201 - Rev. B
