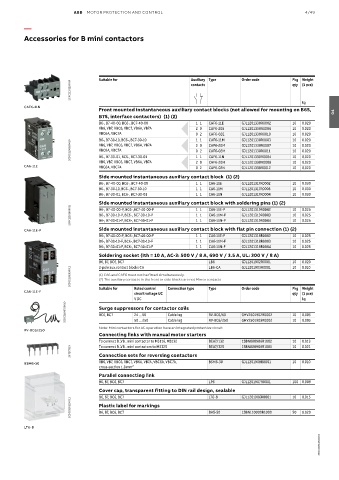

Page 565 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 4/49

—
Accessories for B mini contactors

Suitable for Auxiliary Type Order code Pkg Weight
2CDC211012S0010
(1 pce)
qty
contacts
CAF6-11N kg
Front mounted instantaneous auxiliary contact blocks (not allowed for mounting on B6S, 04
B7S, interface contactors) (1) (2)
B6-, B7-40-00, BC6-, BC7-40-00 1 1 CAF6-11E GJL1201330R0002 10 0.020
VB6, VB7, VBC6, VBC7, VB6A, VB7A 2 0 CAF6-20E GJL1201330R0006 10 0.020
VBC6A, VBC7A 0 2 CAF6-02E GJL1201330R0010 10 0.020
B6-, B7-30-10, BC6-, BC7-30-10 1 1 CAF6-11M GJL1201330R0003 10 0.020
2CDC211008S0010 VBC6A, VBC7A 0 2 CAF6-02M GJL1201330R0011 10 0.020
VB6, VB7, VBC6, VBC7, VB6A, VB7A
0.020
GJL1201330R0007
2 0
CAF6-20M
10
CAF6-11N
10
0.020
B6-, B7-30-01, BC6-, BC7-30-01
1 1
GJL1201330R0004
CA6-11E VB6, VB7, VBC6, VBC7, VB6A, VB7A 2 0 CAF6-20N GJL1201330R0008 10 0.020
VBC6A, VBC7A
10
CAF6-02N
0.020
0 2
GJL1201330R0012
Side mounted instantaneous auxiliary contact block (1) (2)
B6-, B7-40-00, BC6-, BC7-40-00 1 1 CA6-11E GJL1201317R0002 10 0.030
B6-, B7-30-10, BC6-, BC7-30-10 1 1 CA6-11M GJL1201317R0003 10 0.030
B6-, B7-30-01, BC6-, BC7-30-01 1 1 CA6-11N GJL1201317R0004 10 0.030
Side mounted instantaneous auxiliary contact block with soldering pins (1) (2)
2CDC211018S0011 B6-, B7-40-00-P, BC6-,BC7-40-00-P 1 1 CA6-11E-P GJL1201319R0002 10 0.025
0.025
GJL1201319R0003
1 1
B6-, B7-30-10-P, BC6-, BC7-30-10-P
CA6-11M-P
10
10
1 1
GJL1201319R0004
B6-, B7-30-01-P, BC6-, BC7-30-01-P
0.025
CA6-11N-P
CA6-11E-P Side mounted instantaneous auxiliary contact block with flat pin connection (1) (2)
B6-, B7-40-00-F, BC6-,BC7-40-00-F 1 1 CA6-11E-F GJL1201318R0002 10 0.025
B6-, B7-30-10-F, BC6-, BC7-30-10-F 1 1 CA6-11M-F GJL1201318R0003 10 0.025
B6-, B7-30-01-F, BC6-, BC7-30-01-F 1 1 CA6-11N-F GJL1201318R0004 10 0.025
Soldering socket (Ith = 10 A, AC-3: 500 V / 8 A, 690 V / 3.5 A, UL: 300 V / 8 A)
B6, B7, BC6, BC7 LB6 GJL1201902R0001 10 0.020
LB6-CA
2-pole aux.contact blocks CA
GJL1201903R0001
10
0.010
2CDC211020S0011 (1) CA6 and CAF6 must not be fitted simultaneously.
(2) The auxiliary contacts in the front or side blocks are not Mirror contacts
CA6-11E-F Suitable for Rated control Connection type Type Order code Pkg Weight
circuit voltage UC qty (1 pce)
V DC kg
2CDC211007S0010 Surge suppressors for contactor coils RV-BC6/60 GHV2501902R0002 10 0.005
Cable lug
24 ... 60
BC6, BC7
Cable lug
RV-BC6/250
50 ... 250
Note: Mini contactors for AC operation have an integrated protective circuit GHV2501903R0002 10 0.005
RV-BC6/250
Connecting links with manual motor starters
To connect B..VB.. mini contactor to MS116, MS132 BEA7/132 1SBN080906R1002 10 0.013
1SBN080906R1001
0.021
10
To connect B..VB.. mini contactors to MS325
BEA7/325
SST27792R Connection sets for reversing contactors
BSM6-30 VB6, VB7, VBC6, VBC7, VB6A, VB7A, VBC6A, VBC7A, BSM6-30 GJL1201908R0001 10 0.010
cross-section 1.8 mm²
Parallel connecting link
B6, B7, BC6, BC7 LP6 GJL1201907R0001 100 0.009
Cover cap, transparent fitting to DIN rail design, sealable
B6, B7, BC6, BC7 LT6-B GJL1201906R0001 10 0.015
2CDC231012S0011 Plastic label for markings BA5-50 1SBN110000R1000 50 0.020
B6, B7, BC6, BC7
LT6-B
2CDC102042C0201
