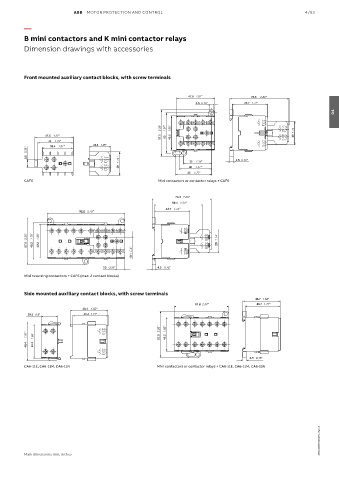

ABB MOTOR PROTECTION AND CONTROL 4/53

—
B mini contactors and K mini contactor relays

Dimension drawings with accessories

Front mounted auxiliary contact blocks, with screw terminals

47.5 1.87" 73.3 2.89"
4.5 0.18" 43.7 1.72"
04

2.26" 1.97" 1.66"
47.5 1.87" 57.5 50 42.2 29 1.14"
44 1.73"
26.6 1.05"
38.4 1.51"
9.6 0.38"
29 1.14" 40 1.57" 4.5 0.18"
35
1.38"
45 1.77"
CAF6 Mini contactors or contactor relays + CAF6

73.3 2.89"
59.4 2.34"
43.7 1.72"
96.2 3.79"

57.5 2.26" 45.2 1.78" 42.2 1.66" 29 1.14"

10.1 0.4"

10 0.39" 4.5 0.18"
Mini reversing contactors + CAF6 (max. 2 contact blocks)

Side mounted auxiliary contact blocks, with screw terminals
46.7 1.84"
67.8 2.67" 43.7 1.72"
46.4 1.83"
20.3 0.8" 43.4 1.71"

1.91" 57.5 2.26" 42.2 1.66"
48.4 42.2 1.66"

4.5 0.18"
CA6-11E, CA6-11M, CA6-11N Mini contactors or contactor relays + CA6-11E, CA6-11M, CA6-11N

2CDC102074C0201 - Rev. A

Main dimensions mm, inches
