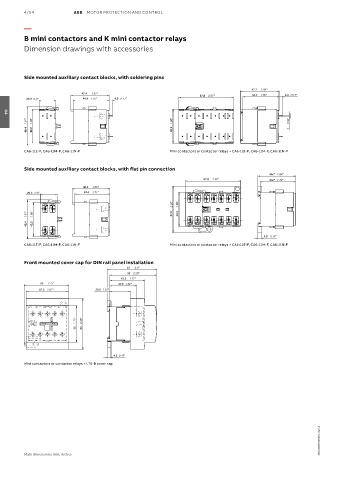

4/54 ABB MOTOR PROTECTION AND CONTROL

—
B mini contactors and K mini contactor relays

Dimension drawings with accessories

Side mounted auxiliary contact blocks, with soldering pins

47.7 1.88"
47.4 1.87"
67.8 2.67" 44.7 1.76" 4.3 0.17"
20.3 0.8" 44.4 1.75" 4.3 0.17"

04
1.91" 1.66" 42.2 1.66" 0.04"
48.4 42.2 1

CA6-11E-P, CA6-11M-P, CA6-11N-P Mini contactors or contactor relays + CA6-11E-P, CA6-11M-P, CA6-11N-P

Side mounted auxiliary contact blocks, with flat pin connection
46.7 1.84"
67.8 2.67" 43.7 1.72"
46.4 1.83"
20.3 0.8" 43.4 1.71"
2.26" 1.66"
1.91" 1.66" 57.5 42.2
48.4 42.2

4.5 0.18"
CA6-11E-F, CA6-11M-F, CA6-11N-F Mini contactors or contactor relays + CA6-11E-F, CA6-11M-F, CA6-11N-F

Front mounted cover cap for DIN rail panel installation
61 2.4"
58 2.28"
43.5 1.71"
55 2.17" 33.5 1.32"
52.5 2.07" 25.6 1.01"

45 1.77" 63 2.48"

4.5 0.18"
Mini contactors or contactor relays + LT6-B cover cap

2CDC102074C0201 - Rev. A

Main dimensions mm, inches
