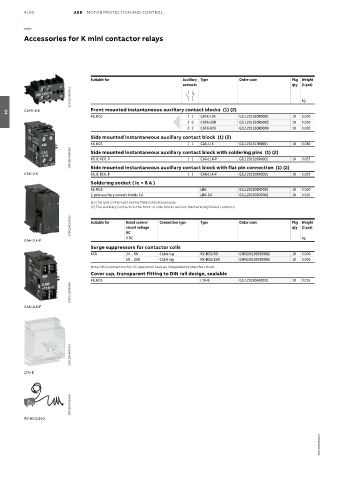

Accessories for K mini contactor relays

Suitable for Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)
2CDC211019S0011 kg

CAF6-11K Front mounted instantaneous auxiliary contact blocks (1) (2)
K6, KC6 1 1 CAF6-11K GJL1201330R0001 10 0.020
04
2 0 CAF6-20K GJL1201330R0005 10 0.020
0 2 CAF6-02K GJL1201330R0009 10 0.020
Side mounted instantaneous auxiliary contact block (1) (2)
K6, KC6 1 1 CA6-11K GJL1201317R0001 10 0.030
2CDC211009S0010 Side mounted instantaneous auxiliary contact block with soldering pins (1) (2) 10 0.025
GJL1201319R0001
K6..P, KC6..P
CA6-11K-P
1 1
K6..F, KC6..F
CA6-11K Side mounted instantaneous auxiliary contact block with flat pin connection (1) (2) 10 0.025
CA6-11K-F
1 1
GJL1201318R0001
Soldering socket ( Ie < 8 A )
K6, KC6 LB6 GJL1201902R0001 10 0.020
2-pole auxiliary contact blocks CA LB6-CA GJL1201903R0001 10 0.010
(1) CA6 and CAF6 must not be fitted simultaneously.
(2) The auxiliary contacts in the front or side blocks are not Mechanically linked contacts
2CDC211011S0010 Suitable for Rated control Connection type Type Order code Pkg Weight
circuit voltage
(1 pce)
qty
UC
CA6-11K-P V DC kg
Surge suppressors for contactor coils
KC6 24 ... 60 Cable lug RV-BC6/60 GHV2501902R0002 10 0.005
50 ... 250 Cable lug RV-BC6/250 GHV2501903R0002 10 0.005
Note: Mini contactors for AC operation have an integrated protective circuit
Cover cap, transparent fitting to DIN rail design, sealable
K6, KC6 LT6-B GJL1201906R0001 10 0.015
2CDC211010S0010

CA6-11K-F

2CDC211006S0010

LT6-B

2CDC211007S0010
