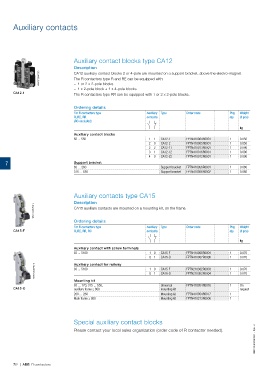

Page 118 - 1SBC104119C0202_MainCatalog_R contactors

Auxiliary contacts

1SBC373832F0301 Auxiliary contact blocks type CA12

CA12-1 Description
CA12 auxiliary contact blocks 2 or 4-pole are mounted on a support bracket, above the electro-magnet.
7
The R contactors type R and RE can be equipped with:
CA15-F –– 1 or 2 x 2-pole blocks
CA15-O –– 1 x 2-pole block + 1 x 4-pole blocks.

The R contactors type RR can be equipped with 1 or 2 x 2-pole blocks.

Ordering details Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)
For R contactors type
R, RE, RR 11 CA12-1 FPTN410004R0001 kg
(RC excluded) 20 CA12-2 FPTN410005R0001
22 CA12-11 FPTN410013R0001 1 0.050
Auxiliary contact blocks 31 CA12-12 FPTN410016R0001 1 0.050
63 ... 550 40 CA12-22 FPTN410012R0001 1 0.090
1 0.090
Support bracket Support bracket FPTN410056R0001 1 0.090
63 … 260 Support bracket FPTN410056R0002
315 … 550 1 0.060
1 0.060

1SBC104054F0014 Auxiliary contacts type CA15

Description
CA15 auxiliary contacts are mounted on a mounting kit, on the frame.

Ordering details Auxiliary Type Order code Pkg Weight
contacts qty (1 pce)
For R contactors type
R, RE, RR, RC kg

1SBC104053F0014 Auxiliary contact with screw terminals 1 0 CA15-F FPTN410008R0004 1 0.070
63 ... 5100 0 1 CA15-O FPTN410007R0006 1 0.070

Auxiliary contact for railway 1 0 CA15-F FPTN210382R0003 1 0.070
63 ... 5100 0 1 CA15-O FPTN210382R0004 1 0.070

Mounting kit Universal FPTN410054R0016 1 On
63 … 170, 315 … 550, mounting kit request
auxiliary frame ≥ 800 Mounting kit FPTN410054R0017
200 … 260 Mounting kit FPTN410213R0006 1
Main frame ≥ 800 1

Special auxiliary contact blocks 1SBC104053S0201 - Rev. A

Please contact your local sales organization (order code of R contactor needed).

7/2 | ABB R contactors
