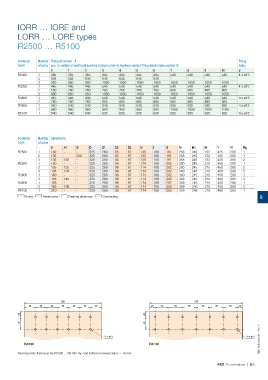

Page 141 - 1SBC104119C0202_MainCatalog_R contactors

IORR … IORE and
LORR … LORE types
R2500 … R5100

Contactor Number Fixing dimension - F Fixing
types holes
of poles acc. to number of additional auxiliary contacts (refer to Auxiliary contact fitting details table, section 2): ø
R2500 4 x ø13
01234567 8 9 10
R3200 540 540 540 4 x ø13
1 385 385 385 445 445 445 445 540 - - -
R3800 2 635 635 635 635 635 635 635 - 1050 1050 1050 4 x ø13
R4500 3 950 950 950 1050 1050 1050 1050 1050 540 540 540 4 x ø13
R5100 1 445 445 445 540 540 540 540 540 885 885 885 4 x ø13
2 760 760 760 760 760 760 760 885 1050 1050 1050
3 950 950 950 1050 1050 1050 1050 1050 540 540 540
1 445 445 445 540 540 540 540 540 885 885 885
2 760 760 760 885 885 885 885 885 635 635 635
1 540 540 540 540 540 540 540 635 1050 1050 1050
2 950 950 950 950 950 950 950 1050 635 635 635
1 540 540 540 635 635 635 635 635

Contactor Number Dimensions
types of poles

A A1 B D D1 D2 D3 H I I1 M M1 N Y Y1 Fig

R2500 1 130 - - 325 260 85 87 135 108 161 258 245 152 425 280 1
2 135 - 220 325 260 85 87 135 108 161 258 245 152 425 280 1
3 135 135 - 325 260 85 87 135 108 161 258 245 152 425 280 2
R3200 1 150 - - 325 260 99 87 174 108 202 300 245 215 450 280 1
2 135 135 - 325 260 99 87 174 108 202 300 245 215 450 280 2
3 135 135 - 325 260 99 87 174 108 202 300 245 215 450 280 2
R3800 1 160 - - 325 260 99 87 174 108 202 300 245 215 450 280 1
2 145 145 - 325 260 99 87 174 108 202 300 245 215 450 280 2
R4500 1 185 - - 325 260 99 87 174 108 202 300 245 215 450 280 1
2 185 180 - 325 260 99 87 174 108 202 300 245 215 450 280 2
R5100 1 210 - - 325 260 99 87 174 108 202 300 245 215 465 280 1

Fixing - Dimensions - Clearing distances - Connecting 9

280 340
40 40 40 40 40 40 40 20 50 50 50 50 50 50 20

45 20
45 20
1SBC104013S0201 - Rev. A
12 x ø13 14 x ø13

R4500 R5100 ABB R contactors | 9/5

Terminal plate thickness for R2500 ... R5100: top and bottom terminal plates = 10 mm
