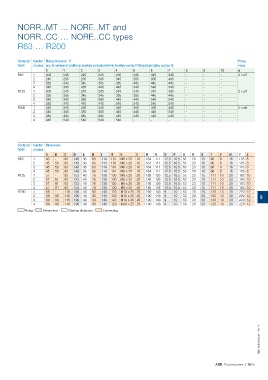

Page 161 - 1SBC104119C0202_MainCatalog_R contactors

NORR..MT … NORE..MT and
NORR..CC … NORE..CC types
R63 … R200

Contactor Number Fixing dimension - F Fixing
holes
types of poles acc. to number of additional auxiliary contacts (refer to Auxiliary contact fitting details table, section 2):

0 1 2 3 4 5 6 7 8 9 10 ø

R63 1 205 245 245 285 285 345 345 345 - - - 2 x ø7

2 245 285 285 345 345 385 385 445 - - -

3 285 345 345 385 385 445 445 445 - - -

4 345 385 385 445 445 540 540 540 - - -

R125 1 205 245 245 285 345 345 345 385 - - - 2 x ø7

2 285 285 345 345 385 385 445 445 - - -

3 345 345 385 385 445 445 540 540 - - -

4 385 445 445 445 540 540 540 540 - - -

R200 1 245 285 285 345 345 385 385 445 - - - 2 x ø9

2 345 345 385 385 445 445 445 540 - - -

3 385 445 445 445 540 540 540 540 - - -

4 445 540 540 540 540 - - - - - -

Contactor Number Dimensions

types of poles

A BCDE HI I1 K ℓ MN O P Q R S T V W YZ

R63 1 45 - 93 148 36 63 114 101 M6 x 20 16 164 111 12.5 10.5 53 23 15 96 8 16 178 8
R125 2 45 50 93 148 36 63 114 101 M6 x 20 16 164 111 12.5 10.5 53 23 15 96 8 16 178 8
R200 3 45 50 93 148 36 63 114 101 M6 x 20 16 164 111 12.5 10.5 53 23 15 96 8 16 178 8
4 45 50 93 148 36 63 114 101 M6 x 20 16 164 111 12.5 10.5 53 23 15 96 8 16 178 8
1 57 - 93 153 40 76 138 130 M8 x 20 20 188 126 12.5 10.5 53 23 15 111 10 20 183 10 9
2 57 61 93 153 40 76 138 130 M8 x 20 20 188 126 12.5 10.5 53 23 15 111 10 20 183 10
3 57 61 93 153 40 76 138 130 M8 x 20 20 188 126 12.5 10.5 53 23 15 111 10 20 183 10
4 57 61 93 153 40 76 138 130 M8 x 20 20 188 126 12.5 10.5 53 23 15 111 10 20 183 10
1 69 - 116 190 40 93 140 123 M10 x 25 25 190 143 9 10 53 20 25 125 13 20 220 12
2 69 68 116 190 40 93 140 123 M10 x 25 25 190 143 9 10 53 20 25 125 13 20 220 12
3 69 68 116 190 40 93 140 123 M10 x 25 25 190 143 9 10 53 20 25 125 13 20 220 12
4 69 68 116 190 40 93 140 123 M10 x 25 25 190 143 9 10 53 20 25 125 13 20 220 12
