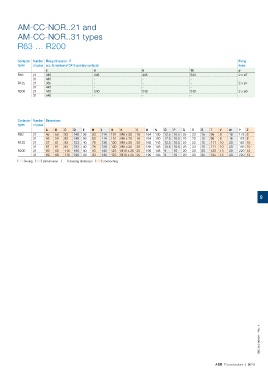

Page 165 - 1SBC104119C0202_MainCatalog_R contactors

AM-CC-NOR..21 and
AM-CC-NOR..31 types
R63 … R200

Contactor Number Fixing dimension - F Fixing
holes
types of poles acc. to number of CA15 auxiliary contacts:

5 6 8 10 ø

R63 21 345 445 445 540 2 x ø7

31 445 - - -

R125 21 385 - - - 2 x ø7

31 445 - - -

R200 21 445 540 540 540 2 x ø9

31 540 - - -

Contactor Number Dimensions

types of poles

A BCDE HI I1 K ℓ M N O P Q R S T V W YZ

R63 21 45 50 93 148 36 63 114 101 M6 x 20 16 164 130 12.5 10.5 25 23 15 96 8 16 178 8
R125 31
R200 21 45 50 93 148 36 63 114 101 M6 x 20 16 164 130 12.5 10.5 25 23 15 96 8 16 178 8
31
21 57 61 93 153 40 76 138 130 M8 x 20 20 188 145 12.5 10.5 25 23 15 111 10 20 183 10
31
57 61 93 153 40 76 138 130 M8 x 20 20 188 145 12.5 10.5 25 23 15 111 10 20 183 10

69 68 116 190 40 93 140 123 M10 x 25 25 190 145 9 10 20 20 25 125 13 20 220 12

69 68 116 190 40 93 140 123 M10 x 25 25 190 145 9 10 20 20 25 125 13 20 220 12
