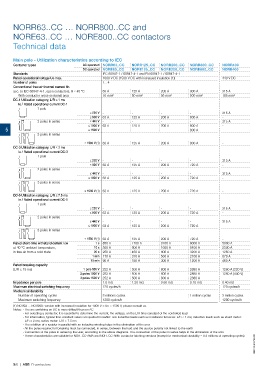

Page 58 - 1SBC104119C0202_MainCatalog_R contactors

NORR63..CC … NORR800..CC and
NORE63..CC … NORE800..CC contactors
Technical data

Main pole - Utilization characteristics according to IEC

Contactor types AC operated NORR63..CC NORR125..CC NORR200..CC NORR800..CC NORR400
NORE400
Standards DC operated NORE63..CC NORE125..CC NORE200..CC NORE800..CC
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1 440 V DC

Rated operational voltage Ue max. 1000 V DC (1500 V DC with increased insulation (1)) 315 A
185 mm²
Number of poles 1…4
315 A
Conventional free-air thermal current Ith -
315 A
acc. to IEC 60947-4-1, open contactors, θ ≤ 40 °C 63 A 125 A 200 A 800 A -
With conductor cross-sectional area 16 mm² 50 mm² 95 mm² 500 mm² -

DC-1 Utilization category, L/R ≤ 1 ms

Ie / Rated operational current DC-1

1 pole

≤ 220 V - - - -

2 poles in series ≤ 500 V 63 A 125 A 200 A 800 A
≤ 440 V - - - -

5 ≤ 1000 V 63 A 125 A 200 A 800 A
≤ 1500 V - - - 800 A

3 poles in series

DC-3 Utilization category, L/R ≤ 2 ms ≤ 1500 V (1) 63 A 125 A 200 A 800 A -
Ie / Rated operational current DC-3
1 pole ≤ 220 V - - - - 315 A
≤ 500 V 63 A 125 A 200 A 720 A -
2 poles in series ≤ 440 V - - - - 315 A
≤ 1000 V 63 A 125 A 200 A 720 A -
3 poles in series

DC-5 Utilization category, L/R ≤ 7.5 ms ≤ 1500 V (1) 63 A 125 A 200 A 720 A -
Ie / Rated operational current DC-5
1 pole ≤ 220 V - - - - 315 A
≤ 500 V 63 A 125 A 200 A 720 A -
2 poles in series ≤ 440 V - - - - 315 A
≤ 1000 V 63 A 125 A 200 A 720 A -
3 poles in series

Rated short-time withstand current Icw ≤ 1500 V (1) 63 A 125 A 200 A 720 A -
at 40 °C ambient temperature, 1s 850 A 1700 A 3100 A 9000 A 5000 A
in free air from a cold state 500 A 900 A 1600 A 6400 A 2500 A
10 s 250 A 450 A 800 A 3200 A 1250 A
Rated breaking capacity 30 s 170 A 310 A 560 A 2100 A 870 A
(L/R ≤ 15 ms) 1 min 90 A 180 A 300 A 1200 A 460 A
15 min
Impedance per pole 500 A 800 A 2880 A 1260 A (220 V)
Maximum electrical switching frequency 1 pole 500 V 252 A 500 A 800 A 2880 A 1260 A (440 V)
Mechanical durability 2 poles 1000 V 252 A 500 A 800 A 2880 A -
3 poles 1500 V 252 A 1.20 mΩ 0.60 mΩ 0.18 mΩ 0.40 mΩ
Number of operating cycles 1.8 mΩ 120 cycles/h
Maximum switching frequency 120 cycles/h 1 million cycles
3 million cycles
3 millions cycles 1200 cycles/h
1200 cycles/h

(1) NOR63 ... NOR200: version with increased insulation for 1000 V < Ue < 1500 V, please consult us. 1SBC104037S0201
Notes: - The arc switching on DC is more difficult than on AC

- For selecting a contactor, it is essential to determine the current, the voltage, an the L/R time constant of the controlled load
- For information, typical time constant values are quoted hereafter: non inductive loads such as resistance furnaces: L/R < 1 ms; inductive loads such as shunt motor:

L/R < 2 ms; series motor: L/R < 7.5 ms
- The addition of a resistor in parallel with an inductive winding helps in the elimination of the arcs
- All the poles required for breaking must be connected, in series, between the load and the source polarity not linked to the earth
- Connection of the poles in series by the user, according to the above diagrams. The connection of the poles in series helps in the elimination of the arcs
- These characteristics are suitable for NOR..CC-AMA and NOR..CC-AME contactor latching versions (except for mechanical durability = 0.2 millions of operating cycles).

5/6 | ABB R contactors
