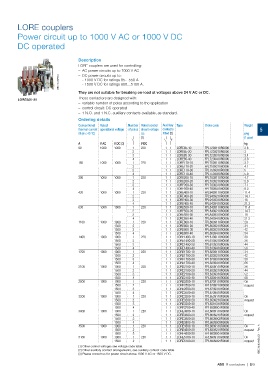

Page 61 - 1SBC104119C0202_MainCatalog_R contactors

LORE couplers
Power circuit up to 1000 V AC or 1000 V DC
DC operated

1SBC104039F0000 Description

LORE couplers are used for controlling:

–– AC power circuits up to 1000 V AC

–– DC power circuits up to:
--1000 V DC for ratings 85…550 A
--1500 V DC for ratings 800…5100 A.

LORE800-30 They are not suitable for breaking on-load at voltages above 24 V AC or DC.

These contactors are designed with:
–– variable number of poles according to the application
–– control circuit: DC operated
–– 1 N.O. and 1 N.C. auxiliary contacts available, as standard.

Ordering details Number Rated control Auxiliary Type Order code Weight 5
contacts
Conventional Rated of poles circuit voltage fitted (2) pkg
thermal current operational voltage (1 pce)
lth (θ ≤ 40 °C) Uc
(1) kg
2.6
A V AC V DC (3) V DC 3
3.4
90 1000 1000 1 220 1 1 LORE85-10 FPL7239110R0006 3.8
2 1 1 LORE85-20 FPL7239210R0006 3.2
3 1 1 LORE85-30 FPL7239310R0006 4.1
4 1 1 LORE85-40 FPL7239410R0006 5
185 1000 1000 1 220 1 1 LORE170-10 FPL7539110R0006 5.9
2 1 1 LORE170-20 FPL7539210R0006 4.7
3 1 1 LORE170-30 FPL7539310R0006 5.9
4 1 1 LORE170-40 FPL7539410R0006 7.1
300 1000 1000 1 220 1 1 LORE260-10 FPL7839110R0006 8.3
2 1 1 LORE260-20 FPL7839210R0006 11.4
3 1 1 LORE260-30 FPL7839310R0006 14.7
4 1 1 LORE260-40 FPL7839410R0006 18
420 1000 1000 1 220 1 1 LORE400-10 FPL9439110R0006 21.3
2 1 1 LORE400-20 FPL9439210R0006 11.4
3 1 1 LORE400-30 FPL9439310R0006 14.7
4 1 1 LORE400-40 FPL9439410R0006 18
630 1000 1000 1 220 1 1 LORE550-10 FPL8439110R0006 21.3
2 1 1 LORE550-20 FPL8439210R0006 29
3 1 1 LORE550-30 FPL8439310R0006 34
4 1 1 LORE550-40 FPL8439410R0006 42
1100 1000 1000 1 220 1 1 LORE800-10 FPL8639110R0006 54
1500 2 1 1 LORE800-20 FPL8639210R0006 30
1500 3 1 1 LORE800-30 FPL8639310R0006 36
1500 4 1 1 LORE800-40 FPL8639410R0006 44
1400 1000 1000 1 220 1 1 LORE1400-10 FPL6139110R0006 56
1500 2 1 1 LORE1400-20 FPL6139210R0006 34
1500 3 1 1 LORE1400-30 FPL6139310R0006 42
1500 4 1 1 LORE1400-40 FPL6139410R0006 50
1700 1000 1000 1 220 1 1 LORE1700-10 FPL6239110R0006 66
1500 2 1 1 LORE1700-20 FPL6239210R0006 36
1500 3 1 1 LORE1700-30 FPL6239310R0006 44
1500 4 1 1 LORE1700-40 FPL6239410R0006 52
2100 1000 1000 1 220 1 1 LORE2100-10 FPL6339110R0006 68
1500 2 1 1 LORE2100-20 FPL6339210R0006 On
1500 3 1 1 LORE2100-30 FPL6339310R0006 request
1500 4 1 1 LORE2100-40 FPL6339410R0006
2500 1000 1000 1 220 1 1 LORE2500-10 FPL6739110R0006
1500 2 1 1 LORE2500-20 FPL6739210R0006
1500 3 1 1 LORE2500-30 FPL6739310R0006
1500 4 1 1 LORE2500-40 FPL6739410R0006
3200 1000 1000 1 220 1 1 LORE3200-10 FPL6539110R0006 On
1500 2 1 1 LORE3200-20 FPL6539210R0006 request
1500 3 1 1 LORE3200-30 FPL6591310R0006
1500 4 1 1 LORE3200-40 FPL6539001R0006
3800 1000 1000 1 220 1 1 LORE3800-10 FPL6639110R0006 On
1500 2 1 1 LORE3800-20 FPL6639210R0006 request
1500 3 1 1 LORE3800-30 FPL6639002R0006
1500 4 1 1 LORE3800-40 FPL6639003R0006
4500 1000 1000 1 220 1 1 LORE4500-10 FPL6839110R0006 On
1500 2 1 1 LORE4500-20 FPL6839210R0006 request 1SBC104076S0201 - Rev. A
1500 3 1 1 LORE4500-30 FPL6839001R0006 On
5100 1000 1000 1 220 1 1 LORE5100-10 FPL6939110R0006 request
1500 2 1 1 LORE5100-20 FPL6939001R0006

(1) Other control voltages see voltage code table.
(2) Other auxiliary contact arrangements, see auxiliary contact code table.
(3) Please consult us for power circuit above 1000 V AC or 1500 V DC.
