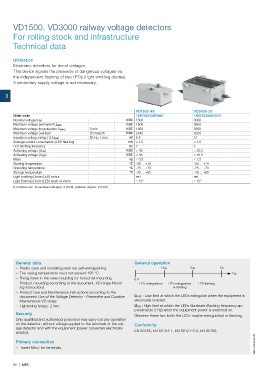

VD1500, VD3000 railway voltage detectors
For rolling stock and infrastructure

Technical data

Utilisation
Electronic detectors for direct voltages.
This device signals the presence of dangerous voltages via
the independent flashing of two LEDs (Light emitting diodes).
A secondary supply voltage is not necessary.

3

VD1500-48 VD3000-25
Order code 1SBT900000R0007 1SBT903000R2501
Nominal voltage (U N) V DC 1500 3000
Maximum voltage permanent U MAX1 V DC 1800 3600
Maximum voltage long duration U MAX2 5 min V DC 1950 3900
Maximum voltage overload 20 msec/h V DC 2540 4200
Insulation voltage rating (1) (U NM) 50 Hz, 1 min kV 6.5 12
Average current consumption (LED flashing) mA ≤ 1.5 ≤ 1.5
LED flashing frequency Hz 2 2
Activating voltage (U ON) V DC > 49 > 25.5
Activating voltage (U OFF) V DC < 38 < 16.5
Mass kg ≤ 0.5 ≤ 1.5
Starting temperature °C -40 ... +70 -40 ... +70
Operating temperature °C -25 ... +70 -25 ... +70
Storage temperature °C -40 ... +85 -40 ... +85
Light Emitting Diode (LED) colour red red
Light Emitting Diode (LED) angle of vision ≥ 15° ≥ 15°
(1) Defined acc. to overload category: 3 (OV3), pollution degree: 2 (PD2)

General data General operation
– Plastic case and insulating resin are self-extinguishing. U OFF U ON U N
– The casing temperature must not exceed 105 °C. U dc
– Fixing holes in the case moulding for horizontal mounting. 0 V
– Product mounting according to the document: VD range Mount- LED extinguished LED extinguished LED flashing
ing Instructions. or flashing
– Product Use and Maintenance instructions according to the
document: Use of the Voltage Detector - Preventive and Curative U OFF : Low limit at which the LEDs extinguish when the equipment is
Maintenance VD range. electrically isolated.
– Tightening torque: 2 Nm. U ON : High limit at which the LEDs illuminate (flashing frequency ap-
proximately 2 Hz) when the equipment power is switched on.
Security
Between these two limits the LEDs maybe extinguished or flashing.
Only qualified and authorised personnel may carry out any operation
on the detector; without voltage applied to the terminals of the volt- Conformity
age detector and with the equipment (power converter) electrically
isolated. EN 50155, EN 50124-1, EN 50121-3-2, EN 50163
1SBC140063S0201
Primary connection
– Insert M5x7 for terminals.
