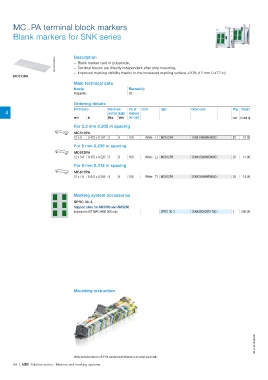

Page 86 - 1SNC160023C0204_Marking_systems_catalog_EN

MC..PA terminal block markers
Blank markers for SNK series

1SNK160024F0014 Description

MC512PA –– Blank marker card in polyamide,
–– Terminal blocks are directly independent after strip mounting,
4 –– Improved marking visibility thanks to the increased marking surface +20% (12 mm 0.472 in).

Main technical data Flammability
V2
Material
Polyamide

Ordering details

Dimensions Maximum Nb. of Color Type Order code Pkg Weight
mm in printed digits markers card (1 card) g
per card MC512PA
Hor. Vert. MC612PA
MC812PA
For 5.2 mm 0.205 in spacing White 1SNK149999R0000 20 10.00

MC512PA
12 x 5 0.472 x 0.197 3 8 100

For 6 mm 0.236 in spacing White 1SNK159999R0000 20 11.00

MC612PA
12 x 5.6 0.472 x 0.220 3 8 100

For 8 mm 0.315 in spacing White 1SNK169999R0000 20 14.00

MC812PA
12 x 7.6 0.472 x 0.299 4 8 100

Marking system accessories SPRC 30-3 1SNA360039R1700 1 500.00

SPRC 30-3
Support plate for AMS500 and AMS250
Included in KIT MAO AMS 500 only

Mounting instruction 1SNC160133S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
