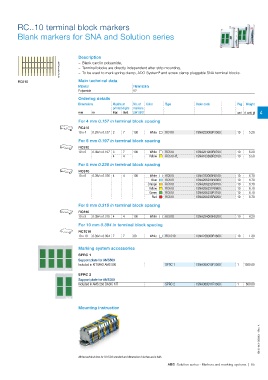

RC..10 terminal block markers
Blank markers for SNA and Solution series

1SNC700141F0000 Description

–– Blank card in polyamide,
–– Terminal blocks are directly independent after strip mounting,
–– To be used to mark spring clamp, ADO System® and screw clamp pluggable SNA terminal blocks.

RC510 Main technical data

Material Flammability
Polyamide V2

Ordering details

Dimensions Maximum Nb. of Color Type Order code Pkg Weight
mm in printed digits markers card (1 card) g
per card 4
Hor. Vert.

For 4 mm 0.157 in terminal block spacing

RC410 White RC410 1SNA229000R1500 10 5.20
10 x 4 0.394 x 0.157 2 7 100

For 5 mm 0.197 in terminal block spacing

RC510 White RC510 1SNA231000R0700 10 5.20
Yellow RC510-YL 1SNA103890R2100 10 5.50
10 x 5 0.394 x 0.197 3 7 100
44

For 6 mm 0.236 in terminal block spacing

RC610 White RC610 1SNA233000R0100 10 6.70
10 x 6 0.394 x 0.236 4 4 100 Blue RC610 1SNA206233R0000 10 6.70
Orange RC610 1SNA206232R0700 10 6.70
Yellow RC610 1SNA206231R0600 10 6.70
Green RC610 1SNA206230R1100 10 6.70
Red RC610 1SNA206235R0200 10 6.70

For 8 mm 0.315 in terminal block spacing

RC810 White RC810 1SNA234000R0200 10 8.20
10 x 8 0.394 x 0.315 4 4 100

For 10 mm 0.394 in terminal block spacing

RC1010 White RC1010 1SNA238000R1600 10 1.30
10 x 10 0.394 x 0.394 7 7 80

Marking system accessories SPRC 1 1SNA360010R1500 1 1500.00
SPRC 2
SPRC 1 1SNA360011R1500 1 600.00
Support plate for AMS500
Included in KIT MAO AMS 500

SPRC 2
Support plate for AMS250
Included in AMS 250 BASIC KIT

Mounting instruction

1SNC160113S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.

ABB Solution series - Markers and marking systems | 85
