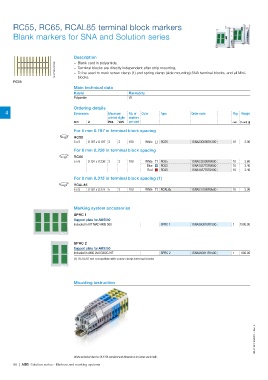

RC55, RC65, RCAL85 terminal block markers
Blank markers for SNA and Solution series

1SNC700141F0000 Description

–– Blank card in polyamide,
–– Terminal blocks are directly independent after strip mounting,
–– To be used to mark screw clamp (1) and spring clamp (side mounting) SNA terminal blocks, and all Mini-

blocks.

RC55 Main technical data Flammability
V2
4 Material
Polyamide

Ordering details

Dimensions Maximum Nb. of Color Type Order code Pkg Weight
mm in printed digits markers card (1 card) g
per card
Hor. Vert.

For 5 mm 0.197 in terminal block spacing

RC55 White RC55 1SNA230000R1200 10 2.90
5 x 5 0.197 x 0.197 3 3 100

For 6 mm 0.236 in terminal block spacing

RC65 White RC65 1SNA232000R0000 10 3.60
5 x 6 0.197 x 0.236 3 3 100 Blue RC65 1SNA103775R0000 10 3.40
Red RC65 1SNA103776R0100 10 3.40

For 8 mm 0.315 in terminal block spacing (1)

RCAL85 White RCAL85 1SNA237000R0500 10 2.90
5 x 8 0.197 x 0.315 5 3 100

Marking system accessories SPRC 1 1SNA360010R1500 1 1500.00

SPRC 1
Support plate for AMS500
Included in KIT MAO AMS 500

SPRC 2 SPRC 2 1SNA360011R1500 1 600.00
Support plate for AMS250
Included in AMS 250 BASIC KIT

(1) RCAL85 not compatible with screw clamp terminal blocks

Mounting instruction

1SNC160114S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.
86 | ABB Solution series - Markers and marking systems
