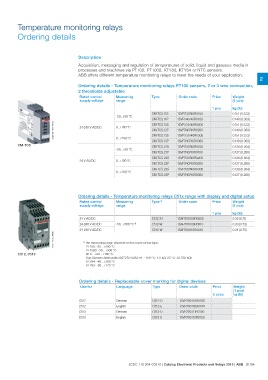

Temperature monitoring relays
Ordering details

Description 2

Acquisition, messaging and regulation of temperatures of solid, liquid and gaseous media in
processes and machines via PT100, PT1000, KTY83, KTY84 or NTC sensors.
ABB offers different temperature monitoring relays to meet the needs of your application:

Ordering details - Temperature monitoring relays PT100 sensors, 2 or 3 wire connection,

2 thresholds adjustable

Rated control Measuring Type Order code Price Weight
supply voltage range (1 pce)

1 pce kg (lb)
0.151 (0.333)
2CDC 251 031 V0012 24-240 V AC/DC -50...+50 °C CM-TCS.11S 1SVR730740R0100 0.140 (0.309)
24 V AC/DC 0...+100 °C CM-TCS.11P 1SVR740740R0100 0.151 (0.333)
CM-TCS 0...+200 °C CM-TCS.12S 1SVR730740R0200 0.140 (0.309)
-50...+50 °C CM-TCS.12P 1SVR740740R0200 0.151 (0.333)
0...+100 °C CM-TCS.13S 1SVR730740R0300 0.140 (0.309)
0...+200 °C CM-TCS.13P 1SVR740740R0300 0.138 (0.304)
CM-TCS.21S 1SVR730740R9100 0.127 (0.280)
CM-TCS.21P 1SVR740740R9100 0.138 (0.304)
CM-TCS.22S 1SVR730740R9200 0.127 (0.280)
CM-TCS.22P 1SVR740740R9200 0.138 (0.304)
CM-TCS.23S 1SVR730740R9300 0.127 (0.280)
CM-TCS.23P 1SVR740740R9300

Ordering details - Temperature monitoring relays C51x range with display and digital setup

Rated control Measuring Type 2) Order code Price Weight
supply voltage range (1 pce)

1 pce kg (lb)
0.32 (0.71)
24 V AC/DC -50...+500 °C 1) C512-24 1SAR700100R0005 0.33 (0.73)
24-240 V AC/DC C512-W 1SAR700100R0010 0.34 (0.75)
1SVC 110 000 F0557 24-240 V AC/DC C513-W 1SAR700110R0010

C512, C513 1) The measuring range depends on the used sensor type:
PT100: -50...+500 °C
PT1000: -50...+500 °C
NTC: +80...+160 °C
(Typ Siemens Matsushita B57272-A333-A1 - 100 °C: 1.8 k:, 25 °C: 32.762 k:)
KTY84: -40...+300 °C
KTY83: -50...+175 °C

Ordering details - Replaceable cover marking for digital devices

Use for Language Type Order code Price Weight
5 pces (1 pce)
kg (lb)

C512 German C512-D 1SVR700101R0100
C512 English C512-E 1SVR700102R0100
C513 German C513-D 1SVR700111R0100
C513 English C513-E 1SVR700112R0100

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 2/104
