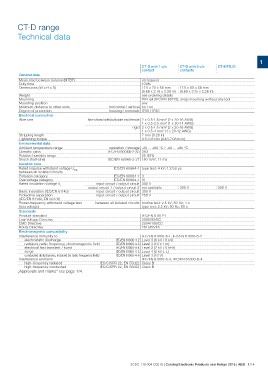

Page 25 - EPR Catalog 2015
P. 25
CT-D range
Technical data
1
CT-D with 1 c/o CT-D with 2 c/o CT-MFD.21
contact contacts
General data
Mean time between failures (MTBF) on request
Duty time
Dimensions (W x H x D) 100%
Weight 17.5 x 70 x 58 mm 17.5 x 80 x 58 mm
Mounting
Mounting position (0.69 x 2.76 x 2.28 in) (0.69 x 3.15 x 2.28 in)
Minimum distance to other units
Degree of protection see ordering details
DIN rail (IEC/EN 60715), snap-mounting without any tool
any
horizontal / vertical no / no
housing / terminals IP50 / IP20
Electrical connection fine-strand with(out) wire end ferrule 2 x 0.5-1.5 mm2 (2 x 20-16 AWG)
Wire size 1 x 0.5-2.5 mm2 (1 x 20-14 AWG)
Stripping length rigid 2 x 0.5-1.5 mm2 (2 x 20-16 AWG)
Tightening torque 1 x 0.5-4 mm2 (1 x 20-12 AWG)
7 mm (0.28 in)
0.5-0.8 Nm (4.43-7.08 lb.in)
Environmental data operation / storage -20 ... +60 °C / -40 ... +85 °C
IEC/EN 60068-2-30 3K3
Ambient temperature range
Climatic class 25-85%
Relative humidity range IEC/EN 60068-2-27 150 m/s2, 11 ms
Shock (half-sine)
Isolation data IEC/EN 60664-1 type test: 4 kV; 1.2/50 μs
Rated impulse withstand voltage Uimp
between all isolated circuits IEC/EN 60664-1 3 300 V 300 V
Pollution category IEC/EN 60664-1 III
Overvoltage category input circuit / output circuit 300 V
Rated insulation voltage Ui output circuit 1 / output circuit 2 not available
input circuit / output circuit 300 V
Basic insulation (IEC/EN 61140) input circuit / output circuit 250 V
Protective separation
(IEC/EN 61140, EN 50178) between all isolated circuits routine test: 2.5 kV; 50 Hz; 1 s
Power-frequency withstand voltage test type test: 2.5 kV; 50 Hz; 60 s
(test voltage)
Standards
Product standard IEC/EN 61812-1
Low Voltage Directive 2006/95/EC
EMC Directive 2004/108/EC
RoHS Directive 2011/65/EC
Electromagnetic compatibility
Interference immunity to IEC/EN 61000-6-1, IEC/EN 61000-6-2
electrostatic discharge IEC/EN 61000-4-2 Level 3 (6 kV / 8 kV)
radiated, radio-frequency, electromagnetic field IEC/EN 61000-4-3 Level 3 (10 V / m)
electrical fast transient / burst IEC/EN 61000-4-4 Level 3 (2 kV / 5 kHz)
surge IEC/EN 61000-4-5 Level 4 (2 kV L-L)
conducted disturbances, induced by radio-frequency fields IEC/EN 61000-4-6 Level 3 (10 V)
Interference emission IEC/EN 61000-6-3, IEC/EN 61000-6-4
high-frequency radiated IEC/CISPR 22, EN 55022 Class B
high-frequency conducted IEC/CISPR 22, EN 55022 Class B
„Approvals and marks“ see page 1/4.
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 1/14
