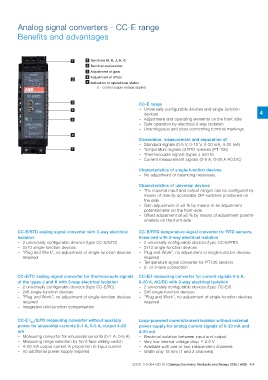

Page 283 - EPR Catalog 2015

Analog signal converters - CC-E range
Benefits and advantages

1 1 Terminals M, K, J, H, G
2 Terminal explanation

3 Adjustment of gain

2 4 Adjustment of offset
4 Indication of operational states
U - control supply voltage applied

3 CC-E range

4 – Universally configurable devices and single-function 4
devices

5 – Adjustment and operating elements on the front side

– Safe operation by electrical 3-way isolation

– Unambiguous and clear connecting terminal markings

2

Conversion, measurement and separation of
– Standard signals (0-5 V, 0-10 V, 0-20 mA, 4-20 mA)
1 – Temperature signals of RTD sensors (PT 100)
– Thermocouple signals (types J and K)
– Current measurement signals (0-5 A, 0-20 A AC/DC)

Characteristics of single-function devices
– No adjustment or balancing necessary.

Characteristics of universal devices
– The required input and output ranges can be configured by

means of directly accessible DIP switches positioned on
the side
– Gain adjustment of ±5 % by means of an adjustment
potentiometer on the front-side
– Offset adjustment of ±5 % by means of adjustment potenti-
ometers on the front-side

CC-E/STD analog signal converter with 3-way electrical CC-E/RTD temperature signal converter for RTD sensors,

isolation linearized with 3-way electrical isolation
– 2 universally configurable devices (type CC-E/STD) – 2 universally configurable devices (type CC-E/RTD)
– 2x10 single-function devices – 2x12 single-function devices
– "Plug and Work", no adjustment of single-function devices – Plug and Work", no adjustment of single-function devices

required required
– Temperature signal converter for PT100 sensors
– 2- or 3-wire connection

CC-E/TC analog signal converter for thermocouple signals CC-E/I measuring converter for current signals 0-5 A,

of the types J and K with 3-way electrical isolation 0-20 A, AC/DC with 3-way electrical isolation
– 2 universally configurable devices (type CC-E/TC) – 2 universally configurable devices (type CC-E/I)
– 2x6 single-function devices – 2x6 single-function devices
– "Plug and Work", no adjustment of single-function devices – "Plug and Work", no adjustment of single-function devices

required required
– Integrated cold-junction compensation

CC-E IAC/ILPO measuring converter without auxiliary Loop-powered current/current isolator without external
power for sinusoidal currents 0-1 A, 0-5 A, output 4-20
power supply for analog current signals of 0-20 mA and
mA
– Measuring converter for sinusoidal currents (0-1 A, 0-5 A) 4-20 mA
– Measuring range selection by front-face sliding switch – Electrical isolation between input and output
– 4-20 mA output current in proportion to input current – Very low internal voltage drop ͨ 2.5 V
– no additional power supply required – Available with one or two independent channels
– Width only 18 mm (1 and 2 channels)
