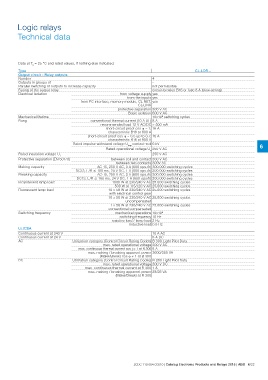

Logic relays
Technical data
Data at Ta = 25 °C and rated values, if nothing else indicated.
Type CL-LDR...
Output circuit - Relay outputs
Number 4
Outputs in groups of -
Parallel switching of outputs to increase capacity not permissible
Fusing of the output relay circuit-breaker B16 or fuse 8 A (slow-acting)
Electrical isolation from voltage supply yes
from the inputs yes
from PC interface, memory module, CL-NET, yes
CL-LINK
protective separation 300 V AC
Basic isolation 600 V AC
Mechanical lifetime 10x106 switching cycles
Rung conventional thermal current (10 A UL) 8 A
recommended load 12 V AC/DC > 500 mA
short-circuit proof cos M = 1; 16 A
characteristic B16 at 600 A
short-circuit proof cos M = 0.5 up to 0.7; 16 A
characteristic B16 at 900 A
Rated impulse withstand voltage Uimp contact-coil 6 kV 6
Rated operational voltage Ue 250 V AC
Rated insulation voltage Ui 250 V AC
Protective separation (EN 50178) between coil and contact 300 V AC
between two contacts 300V AC
Making capacity AC-15, 250 V AC, 3 A (600 ops./h) 300.000 switching cycles
DC13, L/R ͨ 150 ms, 24 V DC, 1 A (500 ops./h) 200.000 switching cycles
Breaking capacity AC-15, 250 V AC, 3 A (600 ops./h) 300.000 switching cycles
DC13, L/R ͨ 150 ms, 24 V DC, 1 A (500 ops/h) 200.000 switching cycles
Incandesent lamp load 1000 W at 230/240 V AC 25.000 switching cycles
500 W at 115/120 V AC 25.000 switching cycles
Fluorescent lamp load 10 x 58 W at 230/240 V AC 25.000 switching cycles
with electrical control gear
10 x 58 W at 230/240 V AC 25.000 switching cycles
uncompensated
1 x 58 W at 230/240 V AC 25.000 switching cycles
conventional compensated
Switching frequency mechanical operations 10x106
switching frequency 10 Hz
resistive load / lamp load 2 Hz
inductive load 0.5 Hz
UL/CSA
Continuous current at 240 V 10 A AC
Continuous current at 24 V 8 A DC
AC Utilization category (Control Circuit Rating Codes) B 300 Light Pilot Duty
max. rated operational voltage 300 V AC
DC max. continuous thermal current cos j = 1 at B 300 5 A
max. making / breaking apparent power 3600/360 VA
(Make/Break) cos M z 1 at B 300
Utilization category (Control Circuit Rating Codes) R 300 Light Pilot Duty
max. rated operational voltage 300 V DC
max. continuous thermal current at R 300 1 A
max. making / breaking apparent power 28/28 VA
(Make/Break) at R 300
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 6/22
