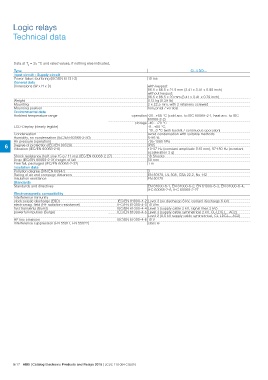

Logic relays
Technical data

Data at Ta = 25 °C and rated values, if nothing else indicated.

Type                                                                                                 CL-LDD...

Input circuit - Supply circuit

Power failure buffering (IEC/EN 61131-2)                                      10 ms

General data

Dimensions (W x H x D)                                                        with keypad:

                                                                              86.5 x 86.5 x 21.5 mm (3.41 x 3.41 x 0.85 inch)

                                                                              without keypad:

                                                                              86.5 x 86.5 x 20 mm (3.41 x 3.41 x 0.79 inch)

Weight                                                                        0.13 kg (0.29 lb)

Mounting                                                                      2 x 22.5 mm, with 2 retainers screwed

Mounting position                                                             horizontal / vertical

Environmental data

Ambient temperature range                                        operation -25...+55 °C (cold acc. to IEC 60068-2-1, heat acc. to IEC

                                                                              60068-2-2)

                                                                 storage -40...+70 °C

LCD-Display (clearly legible)                                                 -5...+50 °C,

                                                                              -10...0 °C (with backlit / continuous operation)

Condensation                                                                  avoid condensation with suitable methods

Humidity, no condensation (IEC/EN 60068-2-30)                                 5-95 %

Air pressure (operation)                                                      795-1080 hPa

6 Degree of protection (IEC/EN 60529)                                         IP65
        Vibration (IEC/EN 60068-2-6)                                          10-57 Hz (constant amplitude 0.15 mm), 57-150 Hz (constant

                                                                              acceleration 2 g)

Shock resistance (half-sine 15 g / 11 ms) (IEC/EN 60068-2-27)                 18 Shocks

Drop (IEC/EN 60068-2-31) height of fall                                       50 mm

Free fall, packaged (IEC/EN 60068-2-32)                                       1m

Insulation data

Pollution degree (DIN EN 60947)                                               3

Rating of air and creepage distances                                          EN 50178, UL 508, CSA 22.2, No 142

Insulation resistance                                                         EN 50178

Standards

Standards and directives                                                      EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4,

                                                                              IEC 60068-2-6, IEC 60068-2-27

Electromagnetic compatibility

Interference immunity

electrostatic discharge (ESD)                                    IEC/EN 61000-4-2 Level 3 (air discharge 8 kV, contact discharge 6 kV)

electromag. field (HF radiation resistance)                      IEC/EN 61000-4-3 10 V/m

fast transients (Burst)                                          IEC/EN 61000-4-4 Level 3 (supply cable 2 kV, signal lines 2 kV)

powerful impulses (Surge)                                        IEC/EN 61000-4-5 Level 3 (supply cable symmetrical 2 kV, CL-LDC.L...AC2)

                                                                              Level 2 (0.5 kV supply cable symmetrical, CL-LDC.L...AC2)

HF line emission                                                 IEC/EN 61000-4-6 10 V

Interference suppression (EN 55011, EN 55022)                                 class B
