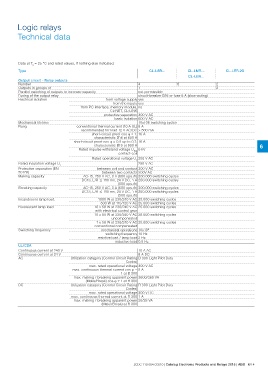

P. 373
Logic relays
Technical data
Data at Ta = 25 °C and rated values, if nothing else indicated.
Type CL-LSR... CL-LMR... CL-LER.2O
CL-LER... 2
2
Output circuit - Relay outputs
Number 46
Outputs in groups of 1
Parallel switching of outputs to increase capacity not permissible
Fusing of the output relay circuit-breaker B16 or fuse 8 A (slow-acting)
Electrical isolation from voltage supply yes
from the inputs yes
from PC interface, memory module, no
CL-NET, CL-LINK
protective separation 300 V AC
basic isolation 600 V AC
Mechanical lifetime 10x106 switching cycles
Rung conventional thermal current (10 A UL) 8 A
recommended for load 12 V AC/DC > 500 mA
short-circuit proof cos M = 1; 16 A
characteristic B16 at 600 A
short-circuit proof cos M = 0,5 up to 0,7; 16 A
characteristic B16 at 900 A 6
Rated impulse withstand voltage Uimp 6 kV
contact-coil
Rated insulation voltage Ui Rated operational voltage Ue 250 V AC
Protective separation (EN
50178) 250 V AC
Making capacity
between coil and contact 300 V AC
Breaking capacity between two contacts 300V AC
Incandesent lamp load AC-15, 250 V AC, 3 A (600 ops./h) 300.000 switching cycles
Fluorescent lamp load DC13, L/R ͨ 150 ms, 24 V DC, 1 A 200.000 switching cycles
Switching frequency (500 ops./h)
AC-15, 250 V AC, 3 A (600 ops./h) 300.000 switching cycles
UL/CSA DC13, L/R ͨ 150 ms, 24 V DC, 1 A 200.000 switching cycles
Continuous current at 240 V
Continuous current at 24 V (500 ops./h)
AC 1000 W at 230/240 V AC 25.000 switching cycles
DC 500 W at 115/120 V AC 25.000 switching cycles
10 x 58 W at 230/240 V AC 25.000 switching cycles
with electrical control gear
10 x 58 W at 230/240 V AC 25.000 switching cycles
uncompensated
1 x 58 W at 230/240 V AC 25.000 switching cycles
conventional compensated
mechanical operations 10x106
switching frequency 10 Hz
resistive load / lamp load 2 Hz
inductive load 0.5 Hz
10 A AC
8 A DC
Utilization catagory (Control Circuit Rating B 300 Light Pilot Duty
Codes)
max. rated operational voltage 300 V AC
max. continuous thermal current cos M = 5 A
1 at B 300
max. making / breaking apparent power 3600/360 VA
(Make/Break) cos M z 1 at B 300
Utilization catagory (Control Circuit Rating R 300 Light Pilot Duty
Codes)
max. rated operational voltage 300 V DC
max. continuous thermal current at R 300 1 A
max. making / breaking apparent power 28/28 VA
(Make/Break) at R 300
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 6/14
