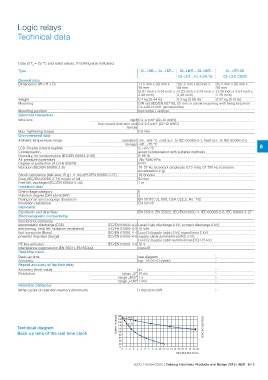

Logic relays
Technical data

Data at Ta = 25 °C and rated values, if nothing else indicated.

Type CL-LSR..., CL-LST... CL-LMR... CL-LMT.. CL-LER.2O

CL-LET.., CL-LER.18.. CL-LEC.CI000

General data 71.5 mm x 90 mm x 107.5 mm x 90 mm x 35.5 mm x 90 mm x
Dimensions (W x H x D)

58 mm 58 mm 58 mm

(2.81 inch x 3.54 inch x (4.23 inch x 3.54 inch x (1.40 inch x 3.54 inch x

2.28 inch) 2.28 inch) 2.28 inch)

Weight 0.2 kg (0.44 lb) 0.3 kg (0.66 lb) 0.07 kg (0.15 lb)
Mounting
DIN rail (IEC/EN 60715), 35 mm or screw mounting with fixing brackets
Mounting position
Electrical connection CL-LAS.FD001 (accessories)

horizontal / vertical

Wire size rigid 0.2-4 mm2 (22–12 AWG)
fine-strand with wire end 0.2-2.5 mm2 (22–12 AWG)
Max. tightening torque
Environmental data ferrule

0.6 Nm

Ambient temperature range operation -25...+55 °C, cold acc. to IEC 60068-2-1, heat acc. to IEC 60068-2-2 6
storage -40...+70 °C
LCD-Display (clearly legible) 0...+55 °C
Condensation avoid condensation with suitable methods
Humidity, no condensation (IEC/EN 60068-2-30) 5-95 %
Air pressure (operation) 795-1080 hPa
Degree of protection (IEC/EN 60529) IP20
Vibration (IEC/EN 60068-2-6) 10-57 Hz (constant amplitude 0.15 mm), 57-150 Hz (constant
acceleration 2 g)
Shock resistance (half-sine 15 g / 11 ms) (IEC/EN 60068-2-27)
Drop (IEC/EN 60068-2-31) height of fall 18 Shocks
Free fall, packaged (IEC/EN 60068-2-32) 50 mm
Insulation data 1m

Overvoltage category II
Pollution degree (DIN EN 60947) 2
Rating of air and creepage distances EN 50178, UL 508, CSA C22.2, No. 142
Insulation resistance EN 50178
Standards
EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27
Standards and directives
Electromagnetic compatibility IEC/EN 61000-4-2 Level 3 (air discharge 8 kV, contact discharge 6 kV)
IEC/EN 61000-4-3 10 V/m
Interference immunity IEC/EN 61000-4-4 Level 3 (supply cable 2 kV, signal lines 2 kV)
electrostatic discharge (ESD) IEC/EN 61000-4-5 supply cable symmetrical (AC) 2 kV,
electromag. field (HF radiation resistance)
fast transients (Burst) Level 2 (supply cable symmetrical (DC) 0.5 kV)
powerful impulses (Surge)
IEC/EN 61000-4-6 10 V
HF line emission class B
Interference suppression (EN 55011, EN 55022)
Real time clock see diagram -
typ. ±5 (±0.5 h/year) -
Back-up time
Accuracy
Repeat accuracy of the time relay

Accuracy (from value) ±1 -
Resolution range „S“ 10 ms -
range „M:S“ 1 s -
Retention behaviour range „H:M“ 1 min -
Write cycles of retention memory (minimum)
1.000.000 (106) -

Buffer time (hours)
2CDC 312 023 F0206
Technical diagram 200
Back-up time of the real time clock 180 25 ˚C
160 55 ˚C
140
120
100
80
60
40
20

0
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Operating time (years)
