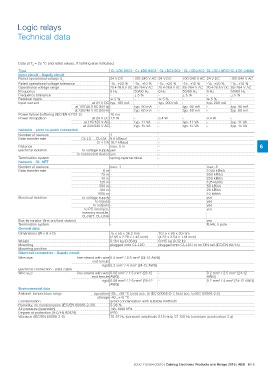

Page 377 - EPR Catalog 2015

Logic relays
Technical data

Data at Ta = 25 °C and rated values, if nothing else indicated.

Type CL-LDC.SDC2 CL-LDC.SAC2 CL-LDC.LDC2 CL-LCD.LAC2 CL-LDC.LNDC2 CL-LDC.LNAC2

Input circuit - Supply circuit

Rated operational voltage Ue 24 V DC 100-240 V AC 24 V DC 100-240 V AC 24 V DC 100-240 V AC

Rated operational voltage tolerance -15...+20 % -15...+10 % -15...+20 % -15...+10 % -15...+20 % -15...+10 %

Operational voltage range 20.4-28.8 V DC 85-264 V AC 20.4-28.8 V DC 85-264 V AC 20.4-28.8 V DC 85-264 V AC

Frequency 0 Hz 50/60 Hz 0 Hz 50/60 Hz 0 Hz 50/60 Hz

Frequency tolerance - ±5% - ±5% - ±5%

Residual ripple ͨ5% - ͨ5% - ͨ5% -

Input current at 24 V DC typ. 185 mA - typ. 200 mA - typ. 200 mA -

at 115/120 V AC (60 Hz) - typ. 90 mA - typ. 90 mA - typ. 90 mA

at 230/240 V AC (50 Hz) - typ. 60 mA - typ. 60 mA - typ. 60 mA

Power failure buffering (IEC/EN 61131-2) 10 ms

Power dissipation at 24 V DC 1.5 W - 3.4 W - 3.4 W -

at 115/120 V AC - typ. 11 VA - typ. 11 VA - typ. 11 VA

at 230/240 V AC - typ. 15 VA - typ. 15 VA - typ. 15 VA

Network - point-to-point connection

Number of stations 1 - 6
Data transfer rate CL-LS..., CL-LM... 9.6 kBaud -
-
Distance CL-LDD 19.2 kBaud -
Electrical isolation max. 5 m -
-
Termination system to voltage supply yes -
Network - CL-NET to connected device yes

spring-type terminal

Number of stations max. 1 - max. 8
Data transfer rate 6m- 1000 kBit/s
25 m - 500 kBit/s
Electrical isolation 40 m - 250 kBit/s
125 m - 125 kBit/s
300 m - 50 kBit/s
700 m - 20 kBit/s
1000 m - 10 kBit/s
to voltage supply - yes
to inputs - yes
to outputs - yes
to PC interface, - yes
memory module,
CL-NET, CL-LINK

Bus terminator (first and last station) - yes
Termination system - RJ45, 8 pole
General data

Dimensions (W x H x D) 75 x 58 x 36.2 mm 107.5 x 90 x 30 mm
(2.95 x 2.28 x 1.43 inch) (4.23 x 3.54 x 1.18 inch)
Weight
Mounting 0.164 kg (0.36 lb) 0.145 kg (0.32 lb)
Mounting position plugged onto CL-LDD plugged onto CL-LDD or on DIN rail (IEC/EN 60715)
Electrical connection - Supply circuit

Wire size fine-strand with wire 0.2 mm2 / 2.5 mm2 (24-12 AWG)
end ferrule
Electrical connection - Data cable
Wire size rigid 0.2 mm2 / 4 mm2 (24-12 AWG)

fine-strand with wire 0.08 mm2 / 1.5 mm2 (28-12 - 0.2 mm2 / 2.5 mm2 (24-12
end ferrule AWG) - AWG)

rigid 0.08 mm2 / 2.5 mm2 (28-12 0.2 mm2 / 4 mm2 (24-12 AWG)
AWG)

Environmental data

Ambient temperature range operation -25...+55 °C (cold acc. to IEC 60068-2-1, heat acc. to IEC 60068-2-2)

storage -40...+70 °C

Condensation avoid condensation with suitable methods

Humidity, no condensation (IEC/EN 60068-2-30) 5-95 %

Air pressure (operation) 795-1080 hPa

Degree of protection (IEC/EN 60529) IP20

Vibration (IEC/EN 60068-2-6) 10-57 Hz (constant amplitude 0.15 mm), 57-150 Hz (constant acceleration 2 g)

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 6/18
