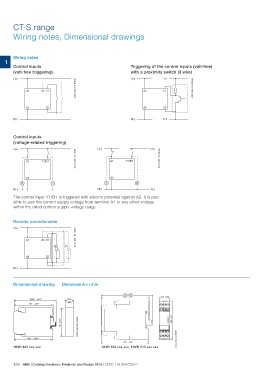

CT-S range
Wiring notes, Dimensional drawings
Wiring notes 2CDC 252 101 F0b06 Triggering of the control inputs (volt-free) 2CDC 252 105 F0b06
with a proximity switch (3 wire)
1
L(+) +V
Control inputs
(volt-free triggering) A1 Y1
L(+)
A1 X1 Y1
A2 Z2 A2 Z2
N(-) N(-) 0V
Control inputs 2CDC 252 102 F0b06 L(+) L(+) 2CDC 252 103 F0b06
(voltage-related triggering) A1
Y1/B1
L(+)
A1 Y1/B1
A2 A2 2CDC 252 104 F0b06
N(-) N(-) L(-)
The control input Y1/B1 is triggered with electric potential against A2. It is pos-
sible to use the control supply voltage from terminal A1 or any other voltage
within the rated control supply voltage range.
Remote potentiometer
L(+)
A1 Z3 Z1
A2 Z2
N(-)
Dimensional drawing Dimensions in mm
113.4 4.47” 22.5 0.89”
105.9 4.17”
109,5 4.31“ 22,5
102 4.02“ .886“
78 3.07“ 85.6 3.37”
2CDC 252 188 F0b05
2CDC 252 009 F0011
100 3.94“ 103.7 4.08”
1SVR 430 xxx xxx 1SVR 730 xxx xxx, 1SVR 740 xxx xxx
