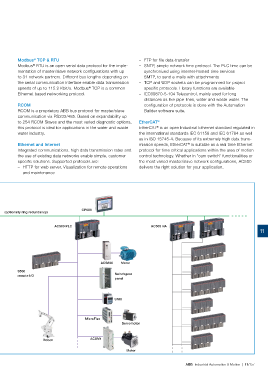

Modbus TCP & RTU – FTP for file data-transfer
®
Modbus RTU is an open serial data protocol for the imple- – SNTP, simple network time protocol. The PLC time can be
®
mentation of master/slave network configurations with up synchronized using internet-hosted time services
to 31 network partners. Different bus lengths depending on – SMTP, to send e-mails with attachments
the serial communication interface enable data transmission – TCP and UDP sockets can be programmed for project
®
speeds of up to 115.2 Kbit/s. Modbus TCP is a common specific protocols. Library functions are available
Ethernet based networking protocol. – IEC60870-5-104 Telecontrol, mainly used for long
distances as like pipe-lines, water and waste-water. The
RCOM configuration of protocols is done with the Automation
RCOM is a proprietary ABB bus protocol for master/slave Builder software suite.
communication via RS232/485. Based on expandability up
to 254 RCOM Slaves and the most varied diagnostic options, EtherCAT ®
this protocol is ideal for applications in the water and waste EtherCAT is an open Industrial Ethernet standard regulated in
®
water industry. the international standards IEC 61158 and IEC 61784 as well
as in ISO 15745-4. Because of its extremely high data trans-
Ethernet and Internet mission speeds, EtherCAT is suitable as a real time Ethernet
®
Integrated communications, high data transmission rates and protocol for time critical applications within the area of motion
the use of existing data networks enable simple, customer control technology. Whether in "cam switch" functionalities or
specific solutions. Supported protocols are: the most varied master/slave network configurations, AC500
– HTTP for web server. Visualization for remote operations delivers the right solution for your application.
and maintenance

CP600
Industrial Ethernet (optionally ring redundancy)

AC500 PLC AC500 HA
11

ACS800 Motor
S500
remote I/O Switchgear
panel

UMC

MicroFlex
Servomotor

Robot ACSM1
Motor
