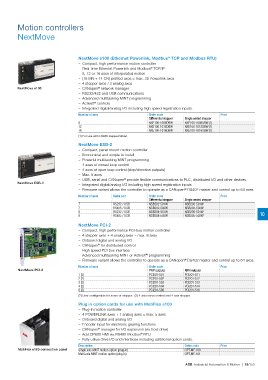

Motion controllers

NextMove

NextMove e100 (Ethernet Powerlink, Modbus TCP and Modbus RTU)
®
– Compact, high performance motion controller
– Real-time Ethernet Powerlink and Modbus TCP/IP
®
– 8, 12 or 16 axes of interpolated motion
– (16 MN + 14 CN) profled axes = max. 30 Powerlink axes
– 4 stepper axes / 3 analog axes
®
NextMove e100 – CANopen network manager
– RS232/422 and USB communications
– Advanced multitasking MINT programming
®
– ActiveX controls
– Integrated digital/analog I/O including high speed registration inputs.
Number of axes Order code Price
Differential stepper Single ended stepper
8 NXE100-1608DBW NXE100-1608SBW (1)
12 NXE100-1612DBW NXE100-1612SBW (1)
16 NXE100-1616DBW NXE100-1616SBW (1)
(1) For use with DSMS stepper/driver.
NextMove ESB-2
– Compact, panel mount motion controller
– Economical and simple to install
– Powerful multitasking MINT programming
– 4 axes of closed loop control
– 4 axes of open loop control (step/direction outputs)
– Max. 8 axes
– USB, serial and CANopen provide fexible communications to PLC, distributed I/O and other devices
®
NextMove ESB-2 – Integrated digital/analog I/O including high speed registration inputs
– Firmware variant allows the controller to operate as a CANopen DS402 master and control up to 64 axes.
®
Number of axes Serial port Order code Price
Differential stepper Single ended stepper
7 RS232 / USB NSB202-501W NSB203-501W
7 RS485 / USB NSB202-502W NSB203-502W
8 RS232 / USB NSB204-501W NSB205-501W
8 RS485 / USB NSB204-502W NSB205-502W 10

NextMove PCI-2
– Compact, high performance PCI-bus motion controller
– 4 stepper axes + 4 analog axes = max. 8 axes
– Onboard digital and analog I/O
– CANopen for distributed control
®
– High speed PCI bus interface
– Advanced multitasking MINT or ActiveX programming
®
– Firmware variant allows the controller to operate as a CANopen DS402 master and control up to 64 axes.
®
Number of axes Order code Price
NextMove PCI-2 PNP outputs NPN outputs
1 (2) PCI201-501 PCI201-511
2 (2) PCI201-502 PCI201-512
3 (2) PCI201-503 PCI201-513
4 (2) PCI201-504 PCI201-514
8 (3) PCI201-508 PCI201-518
(2) User confgurable for servo or stepper. (3) 4-axis servo control and 4-axis stepper.

Plug in option cards for use with MotiFlex e100
– Plug-in motion controller
– 4 POWERLINK axes + 1 analog axes = max. 5 axes
– Onboard digital and analog I/O
– Encoder input for electronic gearing functions
– CANopen manager for I/O expansion (via host drive)
®
– Add CP600 HMI via RS485 Modbus RTU
®
– Fully utilize drive I/O and interfaces including additional option cards.
Description Order code Price
MotiFlex e100 connection panel Single axis MINT motion option (plug-in) OPT-MF-100
Multi-axis MINT motion option (plug-in) OPT-MF-101

ABB Industrial Automation & Motion | 10/153
