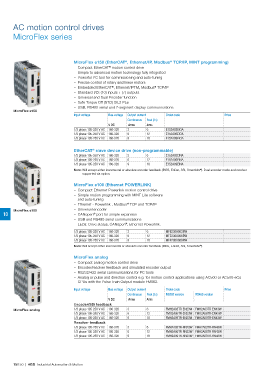

AC motion control drives

MicroFlex series

MicroFlex e150 (EtherCAT , Ethernet/IP, Modbus TCP/IP, MINT programming)
®
®
®
– Compact EtherCAT motion control drive
– Simple to advanced motion technology fully integrated
– Powerful PC tool for commissioning and auto-tuning
– Precise control of rotary and linear motors
®
®
– Embedded EtherCAT , Ethernet/IPTM, Modbus TCP/IP
– Standard I/O: (10) inputs + (7) outputs
– Universal and Dual Encoder function
– Safe Torque Off (STO) SIL3 PLe
– USB, RS485 serial and 7-segment display communications.
MicroFlex e150
Input voltage Bus voltage Output current Order code Price
Continuous Peak (3 s)
V DC Arms Arms
1/3 phase 105-250 V AC 160-320 3 6 E152A03EIOA
1/3 phase 105-250 V AC 160-320 6 12 E152A06EIOA
1/3 phase 105-250 V AC 160-320 9 18 E152A09EIOA

EtherCAT slave device drive (non-programmable)
®
1/3 phase 105-250 V AC 160-320 3 6 E152A03EINA
1/3 phase 105-250 V AC 160-320 6 12 E152A06EINA
1/3 phase 105-250 V AC 160-320 9 18 E152A09EINA
Note: Will accept either incremental or absolute encoder feedback (BiSS, EnDat, SSI, SmartAbs ). Dual encoder mode and resolver
®
supported via option.
MicroFlex e100 (Ethernet POWERLINK)
– Compact Ethernet Powerlink motion control drive
– Simple motion programming with MINT Lite software
and auto-tuning
– Ethernet - Powerlink , Modbus TCP and TCP/IP
®
MicroFlex e100 – Universal encoder
10 – CANopen port for simple expansion
®
– USB and RS485 serial communications
®
– LEDs: Drive status, CANopen , Ethernet Powerlink.
1/3 phase 105-250 V AC 160-320 3 6 MFE230A003BW
1/3 phase 105-250 V AC 160-320 6 12 MFE230A006BW
1/3 phase 105-250 V AC 160-320 9 18 MFE230A009BW
®
Note: Will accept either incremental or absolute encoder feedback (BiSS, EnDat, SSI, SmartAbs ).
MicroFlex analog
– Compact analog motion control drive
– Encoder/resolver feedback and simulated encoder output
– RS232/422 serial communications for PC tools
– Analog or pulse and direction control e.g. for motion control applications using AC500 or AC500-eCo
CPUs with the Pulse Train Output module FM562.

Input voltage Bus voltage Output current Order code Price
Continuous Peak (3 s) RS232 version RS485 version
V DC Arms Arms
Encoder/SSi feedback
MicroFlex analog 1/3 phase 105-250 V AC 160-320 3 6 FMH2A03TR-EN23W FMH2A03TR-EN43W
1/3 phase 105-250 V AC 160-320 6 12 FMH2A06TR-EN23W FMH2A06TR-EN43W
1/3 phase 105-250 V AC 160-320 9 18 FMH2A09TR-EN23W FMH2A09TR-EN43W
Resolver feedback
1/3 phase 105-250 V AC 160-320 3 6 FMH2A03TR-RN23W FMH2A03TR-RN43W
1/3 phase 105-250 V AC 160-320 6 12 FMH2A06TR-RN23W FMH2A06TR-RN43W
1/3 phase 105-250 V AC 160-320 9 18 FMH2A09TR-RN23W FMH2A09TR-RN43W
