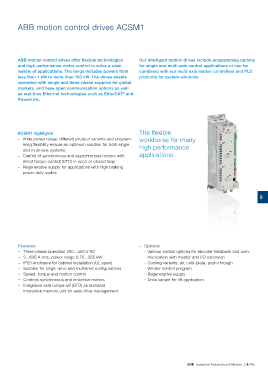

ABB motion control drives ACSM1

ABB motion control drives offer flexible technologies Our intelligent motion drives include programming options
and high performance motor control to solve a wide for single and multi-axis control applications or can be
variety of applications. The range includes powers from combined with our multi-axis motion controllers and PLC
less than 1 kW to more than 100 kW. The drives enable products for system solutions.
operation with single and three-phase supplies for global
markets, and have open communication options as well
as real-time Ethernet technologies such as EtherCAT and
®
PowerLink.

ACSM1 highlights The fexible
– Wide power range, different product variants and program- workhorse for many
ming flexibility ensure an optimum solution for both single high performance
and multi-axis systems.
– Control of synchronous and asynchronous motors with applications
direct torque control (DTC) in open or closed loop
– Regenerative supply for applications with high braking
power duty cycles.

9

Features – Options:
– Three-phase operation 230...500 V AC - Various control options for encoder feedback and com-
– 3...635 A rms, power range 0.75...355 kW munication with master and I/O extension
– IP20 enclosure for cabinet installation (UL open) - Cooling variants: air, cold-plate, push-through
– Suitable for single drive and multidrive configurations - Winder control program
– Speed, torque and motion control - Regenerative supply
– Controls synchronous and induction motors - Drive variant for lift application.
– Integrated safe torque-off (STO) as standard
– Innovative memory unit for easy drive management.

ABB Industrial Automation & Motion | 9/145
