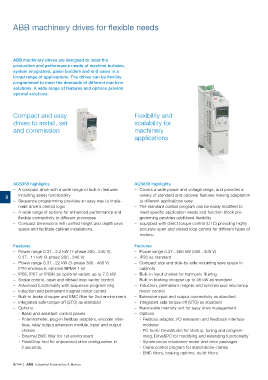

ABB machinery drives for flexible needs

ABB machinery drives are designed to meet the
production and performance needs of machine builders,
system integrators, panel builders and end users in a
broad range of applications. The drives can be flexibly
programmed to meet the demands of different machine
solutions. A wide range of features and options provide
optimal solutions.

Compact and easy Flexibility and
drives to install, set scalability for
and commission machinery
applications

ACS355 highlights ACS850 highlights
– A compact drive with a wide range of built-in features – Covers a wide power and voltage range, and provides a
9 including safety functionality variety of standard and optional features making adaptation
– Sequence programming provides an easy way to imple- to different applications easy
ment drive's control logic – The standard control program can be easily modified to
– A wide range of options for enhanced performance and meet specific application needs and function block pro-
flexible connectivity to different processes gramming provides additional flexibility
– Compact dimensions with unified height and depth save – Equipped with direct torque control (DTC) providing highly
space and facilitate cabinet installations. accurate open and closed loop control for different types of
motors.

Features Features
– Power range 0.37...2.2 kW (1-phase 200...240 V), – Power range 0.37...560 kW (380...500 V)
0.37...11 kW (3-phase 200...240 V) – IP20 as standard
– Power range 0.37...22 kW (3-phase 380...480 V) – Compact size and side-by-side mounting save space in
– IP20 enclosure, optional NEMA 1 kit cabinets
– IP66, IP67 or IP69K as optional variant up to 7.5 kW – Built-in input chokes for harmonic filtering
– Scalar control, open and closed loop vector control – Built-in braking chopper up to 45 kW as standard
– Advanced functionality with sequence programming – Induction, permanent magnet and synchronous reluctance
– Induction and permanent magnet motor control motor control
– Built-in brake chopper and EMC filter for 2nd environment – Extensive input and output connectivity as standard
– Integrated safe torque-off (STO) as standard – Integrated safe torque-off (STO) as standard
– Options – Removable memory unit for easy drive management
- Basic and assistant control panels – Options
- Potentiometer, plug-in fieldbus adapters, encoder inter- - Fieldbus adapter, I/O extension and feedback interface
face, relay output extension module, input and output modules
chokes - PC tools: DriveStudio for startup, tuning and program-
- External EMC filter for 1st environment ming, DriveSPC for modifying and extending functionality
- FlashDrop tool for unpowered drive configuration in - Synchronous reluctance motor and drive packages
2 seconds. - Crane control program for stand-alone cranes
- EMC filters, braking options, du/dt filters.

9/144 | ABB Industrial Automation & Motion
