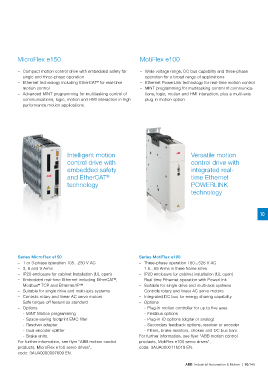

MicroFlex e150 MotiFlex e100

– Compact motion control drive with embedded safety for – Wide voltage range, DC bus capability and three-phase
single and three-phase operation operation for a broad range of applications
– Ethernet technology including EtherCAT for real-time – Ethernet PowerLink technology for real-time motion control
®
motion control – MINT programming for multitasking control of communica-
– Advanced MINT programming for multitasking control of tions, logic, motion and HMI interaction, plus a multi-axis
communications, logic, motion and HMI interaction in high plug-in motion option.
performance motion applications.

Intelligent motion Versatile motion
control drive with control drive with
embedded safety integrated real-
and EtherCAT time Ethernet
®
technology POWERLINK
technology

10

Series MicroFlex e150 Series MotiFlex e100
– 1 or 3-phase operation 105...250 V AC – Three-phase operation 180...528 V AC
– 3, 6 and 9 Arms – 1.5...65 Arms in three frame sizes
– IP20 enclosure for cabinet installation (UL open) – IP20 enclosure for cabinet installation (UL open)
®
– Embedded real-time Ethernet including EtherCAT , – Real time Ethernet operation with PowerLink
Modbus TCP and Ethernet/IP TM – Suitable for single drive and multi-axis systems
®
– Suitable for single drive and multi-axis systems – Controls rotary and linear AC servo motors
– Controls rotary and linear AC servo motors – Integrated DC bus for energy sharing capability
– Safe torque-off feature as standard – Options
– Options - Plug-in motion controller for up to five axes
- MINT Motion programming - Fieldbus options
- Space-saving footprint EMC filter - Plug-in IO options (digital or analog)
- Resolver adapter - Secondary feedback options, resolver or encoder
- Dual encoder splitter - Filters, brake resistors, chokes and DC bus bars.
- Brake units. For further information, see flyer "ABB motion control
For further information, see flyer "ABB motion control products, MotiFlex e100 servo drives",
products, MicroFlex e150 servo drives", code: 3AUA0000116019 EN.
code: 3AUA0000097609 EN.

ABB Industrial Automation & Motion | 10/149
