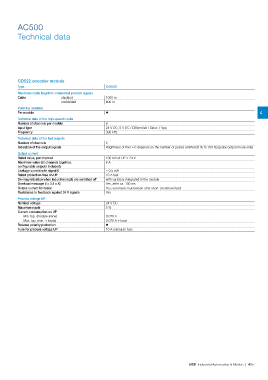

AC500

Technical data

CD522 encoder module
Type CD522
Maximum cable length for connected process signals
Cable shielded 1000 m
unshielded 600 m
Potential isolation
Per module ? 4
Technical data of the high-speed inputs
Number of channels per module 6
Input type 24 V DC, 5 V DC / Differential / Sinus 1 Vpp
Frequency 300 kHz
Technical data of the fast outputs
Number of channels 2
Indication of the output signals Brightness of the LED depends on the number of pulses emitted (0 % to 100 %) (pulse output mode only)
Output current
Rated value, per channel 100 mA at UP = 24 V
Maximum value (all channels together, 8 A
confgurable outputs included)
Leakage current with signal 0 < 0.5 mA
Rated protection fuse on UP 10 A fast
De-magnetization when inductive loads are switched off with varistors integrated in the module
Overload message (I > 0.1 x A) Yes, after ca. 100 ms
Output current limitation Yes, automatic reactivation after short-circuit/overload
Resistance to feedback against 24 V signals Yes
Process voltage UP
Nominal voltage 24 V DC
Maximum ripple 5 %
Current consumption on UP
Min. typ. (module alone) 0.070 A
Max. typ. (min. + loads) 0.070 A + load
Reverse polarity protection ?
Fuse for process voltage UP 10 A miniature fuse
