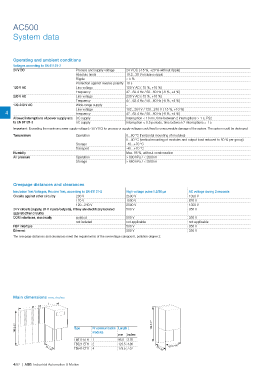

AC500
System data

Operating and ambient conditions
Voltages according to EN 61131-2
24 V DC Process and supply voltage 24 V DC (-15 %, +20 % without ripple)
Absolute limits 19.2...30 V inclusive ripple
Ripple < 5 %
Protection against reverse polarity 10 s
120 V AC Line voltage 120 V AC (-15 %, +10 %)
Frequency 47...62.4 Hz / 50...60 Hz (-6 %, +4 %)
230 V AC Line voltage 230 V AC (-15 %, +10 %)
Frequency 47...62.4 Hz / 50...60 Hz (-6 %, +4 %)
120-240 V AC Wide-range supply –
Line voltage 102...264 V / 120...240 V (-15 %, +10 %)
4 Frequency 47...62.4 Hz / 50...60 Hz (-6 %, +4 %)
Allowed interruptions of power supply acc. DC supply Interruption < 10 ms, time between 2 interruptions > 1 s, PS2
to EN 61131-2 AC supply Interruption < 0.5 periods, time between 2 interruptions > 1 s
Important: Exceeding the maximum power supply voltage (> 30 V DC) for process or supply voltages could lead to unrecoverable damage of the system. The system could be destroyed.
Temperature Operation 0...60 °C (horizontal mounting of modules)
0...40 °C (vertical mounting of modules and output load reduced to 50 % per group)
Storage -40...+70 °C
Transport -40...+70 °C
Humidity Max. 95 %, without condensation
Air pressure Operation > 800 hPa / < 2000 m
Storage > 660 hPa / < 3500 m

Creepage distances and clearances
Insulation Test Voltages, Routine Test, according to EN 61131-2 High voltage pulse 1.2/50 µs AC voltage during 2 seconds
Circuits against other circuitry 230 V 2500 V 1350 V
120 V 1500 V 820 V
120...240 V 2500 V 1350 V
24 V circuits (supply, 24 V inputs/outputs), if they are electrically isolated 500 V 350 V
against other circuitry
COM interfaces, electrically isolated 500 V 350 V
not isolated not applicable not applicable
FBP interface 500 V 350 V
Ethernet 500 V 350 V
The creepage distances and clearances meet the requirements of the overvoltage category II, pollution degree 2.

Main dimensions mm, inches
L

135 5.31” Type Nr communication Length L 135 5.31”

modules
mm inches
TB511-ETH 1 95.5 3.76
TB521-ETH 2 123.5 4.86 67.5 2.66”
TB541-ETH 4 179.5 7.07 75 2.95”
75 2.95”

4/82 | ABB Industrial Automation & Motion
