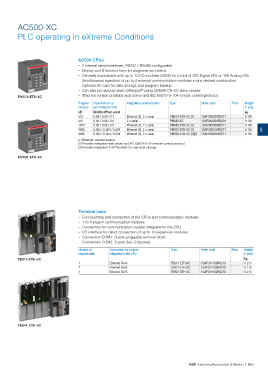

AC500-XC

PLC operating in eXtreme Conditions

AC500 CPUs
– 2 internal serial interfaces, RS232 / RS485 confgurable
– Display and 8 function keys for diagnosis and status
– Centrally expandable with up to 10 I/O modules (S500) for a total of 320 Digital I/Os or 160 Analog I/Os
– Simultaneous operation of up to 4 external communication modules in any desired combination
– Optional SD card for data storage and program backup
– Can also be used as slave CANopen using CM588-CN-XC slave coupler
®
PM573-ETH-XC – Ethernet version provides web server and IEC 60870-5-104 remote control protocol.
Program Cycle time in µs Integrated communication Type Order code Price Weight
memory per instruction min. (1 pce)
kB Bit/Word/Float. point kg
512 0.06 / 0.09 / 0.7 Ethernet (2), 2 x serial PM573-ETH-XC (1) 1SAP330300R0271 0.150
512 0.05 / 0.06 / 0.5 2 x serial PM582-XC 1SAP340200R0201 0.135
1024 0.05 / 0.06 / 0.5 Ethernet (2), 2 x serial PM583-ETH-XC (1) 1SAP340300R0271 0.150
4096 0.002 / 0.004 / 0.004 Ethernet (2), 2 x serial PM591-ETH-XC (1) 1SAP350100R0271 0.150 5
4096 0.002 / 0.004 / 0.004 Ethernet (2), 2 x serial PM592-ETH-XC (1)(3) 1SAP350200R0271 0.150
(1) Ethernet communication.
(2) Provides integrated web server and IEC 60870-5-104 remote control protocol.
(3) Provides integrated 4 GB fashdisk for user data storage.

PM592-ETH-XC

Terminal base
– For mounting and connection of the CPUs and communication modules
– 1 to 4 plug-in communication modules
– Connection for communication coupler integrated in the CPU
– I/O interface for direct connection of up to 10 expansion modules
– Connection COM1: 9-pole pluggable terminal block
– Connection COM2: 9-pole Sub-D (socket).
Number of Connection for coupler Type Order code Price Weight
coupler slots integrated in the CPU (1 pce)
TB511-ETH-XC kg
1 Ethernet RJ45 TB511-ETH-XC 1SAP311100R0270 0.215
2 Ethernet RJ45 TB521-ETH-XC 1SAP312100R0270 0.215
4 Ethernet RJ45 TB421-ETH-XC 1SAP314100R0270 0.215

TB541-ETH-XC
