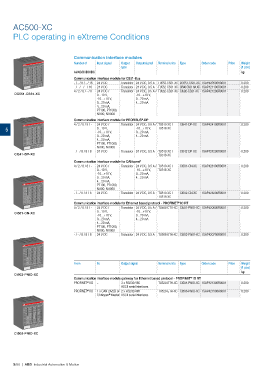

AC500-XC

PLC operating in eXtreme Conditions

Communication interface modules
Number of Input signal Output Output signal Terminal units Type Order code Price Weight
type (1 pce)
AI/AO/DI/DO/DC kg
Communication interface module for CS31-Bus
- / - / 8 / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU552-CS31-XC DC551-CS31-XC 1SAP420500R0001 0.200
- / - / - / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU552-CS31-XC CI590-CS31-HA-XC 1SAP421100R0001 0.200
4 / 2 / 8 / - / 8 24 V DC / Transistor 24 V DC, 0.5 A / TU552-CS31-XC CI592-CS31-XC 1SAP421200R0001 0.200
DC551-CS31-XC 0…10 V, -10…+10 V,
-10…+10 V, 0…20 mA,
0…20 mA, 4…20 mA
4…20 mA,
PT100, PT1000,
Ni100, Ni1000
Communication interface module for PROFIBUS -DP
®
4 / 2 / 8 / 8 / - 24 V DC / Transistor 24 V DC, 0.5 A / TU510-XC / CI541-DP-XC 1SAP424100R0001 0.200
5 0…10 V, -10…+10 V, TU518-XC
-10…+10 V, 0…20 mA,
0…20 mA, 4…20 mA
4…20 mA,
PT100, PT1000,
Ni100, Ni1000
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU510-XC / CI542-DP-XC 1SAP424200R0001 0.200
CI541-DP-XC TU518-XC
Communication interface module for CANopen ®
4 / 2 / 8 / 8 / - 24 V DC / Transistor 24 V DC, 0.5 A / TU510-XC / CI581-CN-XC 1SAP428100R0001 0.200
0…10 V, -10…+10 V, TU518-XC
-10…+10 V, 0…20 mA,
0…20 mA, 4…20 mA
4…20 mA,
PT100, PT1000,
Ni100, Ni1000
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU510-XC / CI582-CN-XC 1SAP428200R0001 0.200
TU518-XC
Communication interface module for Ethernet based protocol - PROFINET IO RT
®
4 / 2 / 8 / 8 / - 24 V DC / Transistor 24 V DC, 0.5 A / TU508-ETH-XC CI501-PNIO-XC 1SAP420600R0001 0.200
0…10 V, -10…+10 V,
CI581-CN-XC
-10…+10 V, 0…20 mA,
0…20 mA, 4…20 mA
4…20 mA,
PT100, PT1000,
Ni100, Ni1000
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU508-ETH-XC CI502-PNIO-XC 1SAP420700R0001 0.200

From To Output signal Terminal units Type Order code Price Weight
(1 pce)
kg
CI502-PNIO-XC
®
Communication interface module gateway for Ethernet based protocol - PROFINET IO RT
PROFINET I/O – 3 x RS232/485 TU520-ETH-XC CI504-PNIO-XC 1SAP421300R0001 0.200
®
ASCII serial interfaces
PROFINET I/O 1 x CAN 2A/2B or 2 x RS232/485 TU520-ETH-XC CI506-PNIO-XC 1SAP421500R0001 0.200
®
CANopen Master ASCII serial interfaces
®

CI506-PNIO-XC

5/90 | ABB Industrial Automation & Motion
