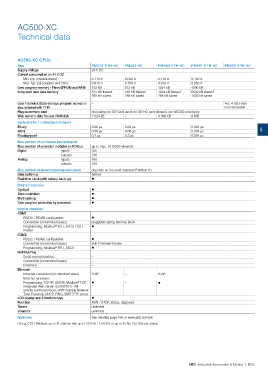

AC500-XC

Technical data

AC500-XC CPUs
Type PM573-ETH-XC PM582-XC PM583-ETH-XC PM591-ETH-XC PM592-ETH-XC
Supply voltage 24 V DC
Current consumption on 24 V DC
Min. typ. (module alone) 0.110 A 0.050 A 0.110 A 0.150 A
Max. typ. (all couplers and I/Os) 0.810 A 0.750 A 0.810 A 0.850 A
User program memory - Flash EPROM and RAM 512 kB 512 kB 1024 kB 4096 kB
Integrated user data memory 512 kB thereof 416 kB thereof 1024 kB thereof 5632 kB thereof
288 kB saved 288 kB saved 288 kB saved 1536 kB saved
User Flashdisk (Data-storage, program access or – Yes, 4 GB Flash
also external with FTP) non removable
Plug-in memory card depending on SD-Card used: no SD-HC card allowed, use MC502 accessory
Web server's data for user RAM disk 1 024 kB – 4 096 kB 8 MB
Cycle time for 1 instruction (minimum)
Binary 0.06 µs 0.05 µs 0.002 µs
Word 0.09 µs 0.06 µs 0.004 µs 5
Floating-point 0.7 µs 0.5 µs 0.004 µs
Max. number of centralized inputs/outputs
Max. number of extension modules on I/O bus up to max. 10 (S500 allowed)
Digital inputs 320
outputs 240
Analog inputs 160
outputs 160
Max. number of decentralized inputs/outputs depends on the used standard Fieldbus (1)
Data buffering battery
Real-time clock (with battery back-up) ?
Program execution
Cyclical ?
Time controlled ?
Multi tasking ?
User program protection by password ?
Internal interfaces
COM1
RS232 / RS485 configurable ?
Connection (on terminal bases) pluggable spring terminal block
Programming, Modbus RTU, ASCII, CS31 ?
®
master
COM2
RS232 / RS485 configurable ?
Connection (on terminal bases) Sub-D female 9 poles
Programming, Modbus RTU, ASCII ?
®
FieldBusPlug
Serial neutral interface –
Connection (on terminal bases) –
Functions –
Ethernet
Ethernet connection (on terminal bases) RJ45 – RJ45
Ethernet functions:
Programming, TCP/IP, UDP/IP, Modbus TCP, ? – ?
®
integrated Web server, IEC60870-5-104
remote control protocol, SNTP (simple Network
Time Protocol), DHCP, PING, SMTP FTP server
LCD display and 8 function keys ?
Function RUN / STOP, status, diagnosis
Timers unlimited
Counters unlimited
Approvals See detailed page 166 or www.abb.com/plc
(1) e.g. CS31 Fieldbus: up to 31 stations with up to 120 DIs / 120 DOs or up to 32 AIs / 32 AOs per station.

ABB Industrial Automation & Motion | 5/93
