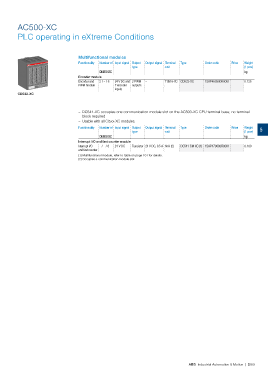

AC500-XC

PLC operating in eXtreme Conditions

Multifunctional modules
Functionality Number of Input signal Output Output signal Terminal Type Order code Price Weight
type unit (1 pce)
DI/DO/DC kg
Encoder module
Encoder and 2 / – / 8 24 V DC and 2 PWM – TU516-XC CD522-XC 1SAP460300R0001 0.125
PWM module 2 encoder outputs
inputs
CD522-XC

– DC541-XC occupies one communication module slot on the AC500-XC CPU terminal base, no terminal
block required
– Usable with all CI5xx-XC modules.
Functionality Number of Input signal Output Output signal Terminal Type Order code Price Weight 5
type unit (1 pce)
DI/DO/DC kg
Interrupt I/O and fast counter module
Interrupt I/O – / – / 8 24 V DC Transistor 24 V DC, 0.5 A N/A (2) DC541-CM-XC (1) 1SAP470000R0001 0.100
and fast counter
(1) Multifunctional module, refer to table on page 101 for details.
(2) Occupies a communication module slot.

ABB Industrial Automation & Motion | 5/89
