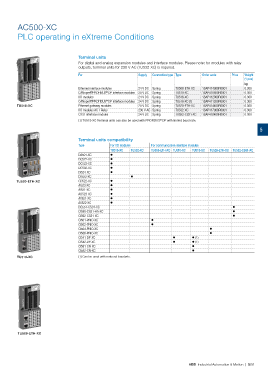

AC500-XC

PLC operating in eXtreme Conditions

Terminal units
For digital and analog expansion modules and interface modules. Please note: for modules with relay
outputs, terminal units for 230 V AC (TU532-XC) is required.
For Supply Connection type Type Order code Price Weight
(1 pce)
kg
Ethernet interface modules 24 V DC Spring TU508-ETH-XC 1SAP414000R0001 0.300
CANopen /PROFIBUS DP interface modules 24 V DC Spring TU510-XC 1SAP410800R0001 0.300
®
®
I/O modules 24 V DC Spring TU516-XC 1SAP412000R0001 0.300
®
®
CANopen /PROFIBUS DP interface modules 24 V DC Spring TU518-XC (1) 1SAP411200R0001 0.300
TU516-XC Ethernet gateway modules 24 V DC Spring TU520-ETH-XC 1SAP414400R0001 0.300
I/O modules AC / Relay 230 V AC Spring TU532-XC 1SAP417000R0001 0.300
CS31 interface modules 24 V DC Spring TU552-CS31-XC 1SAP410400R0001 0.300
®
(1) TU518-XC Terminal units can also be used with PROFIBUS DP with limited baud rate.
5
Terminal units compatibility
Type For I/O modules For communication interface modules
TU516-XC TU532-XC TU508-ETH-XC TU510-XC TU518-XC TU520-ETH-XC TU552-CS31-XC
DA501-XC ?
DC522-XC ?
DC523-XC ?
DC532-XC ?
DI524-XC ?
DX522-XC ?
TU520-ETH-XC CD522-XC ?
AI523-XC ?
AI531-XC ?
AO523-XC ?
AX521-XC ?
AX522-XC ?
DC551-CS31-XC ?
CI590-CS31-HA-XC ?
CI592-CS31-XC ?
CI501-PNIO-XC ?
CI502-PNIO-XC ?
CI504-PNIO-XC ?
CI506-PNIO-XC ?
CI541-DP-XC ? ? (1)
CI542-DP-XC ? ? (1)
CI581-CN-XC ?
CI582-CN-XC ?
TU510-XC (1) Can be used with reduced baudrate.

TU508-ETH-XC
