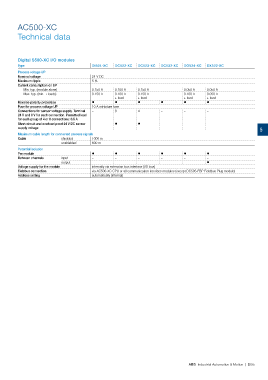

AC500-XC

Technical data

Digital S500-XC I/O modules
Type DI524-XC DC522-XC DC523-XC DC532-XC DO524-XC DX522-XC
Process voltage UP
Nominal voltage 24 V DC
Maximum ripple 5 %
Current consumption on UP
Min. typ. (module alone) 0.150 A 0.100 A 0.150 A 0.050 A 0.050 A
Max. typ. (min. + loads) 0.150 A 0.100 A 0.150 A 0.100 A 0.050 A
+ load + load + load + load
Reverse polarity protection ? ? ? ? ? ?
Fuse for process voltage UP 10 A miniature fuse
Connections for sensor voltage supply. Terminal – 8 4 – – –
24 V and 0 V for each connection. Permitted load
for each group of 4 or 8 connections: 0.5 A
Short-circuit and overload proof 24 V DC sensor – ? ? – – –
supply voltage 5
Maximum cable length for connected process signals
Cable shielded 1000 m
unshielded 600 m
Potential isolation
Per module ? ? ? ? ? ?
Between channels input – – – – – –
output – – – – – ?
Voltage supply for the module internally via extension bus interface (I/O bus)
Fieldbus connection via AC500-XC CPU or all communication interface modules (except DC505-FBP Fieldbus Plug module)
Address setting automatically (internal)

ABB Industrial Automation & Motion | 5/95
